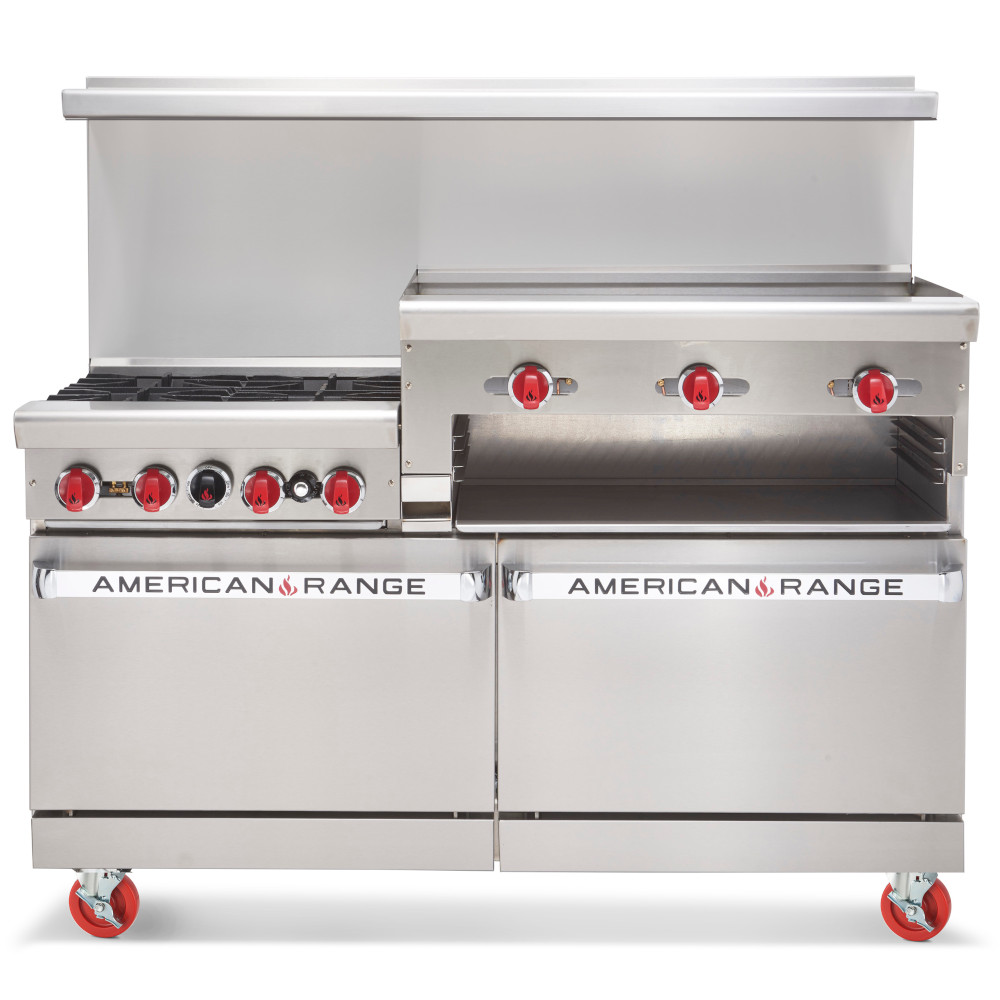

American Range AR-4B-36RG-LP 60" 4 Burner & 36" Raised Griddle Heavy-Duty Restaurant Range with 2 Ovens - Liquid Propane Gas 258,000 BTU
SKU: AR-4B-36RG-LP
American Range AR-4B-36RG-LP 60" 4 Burner & 36" Raised Griddle Heavy-Duty Restaurant Range with 2 Ovens - Liquid Propane Gas 258,000 BTU
American Range, restaurant range size 72" x 32-1/2" x 56" Stainless steel front, sides, backriser, shelf and 6" adjustable legs. Removable full width drip pan. Choose a combo 32,000 BTU/hr. open burners with no-clog lift-off burner heads along with 20,000 BTU/hr. per 12" section raised griddle with 3/4" plate. Heavy-duty cast iron grates, 12" x 12". Burner knobs are cool to the touch, high temperature material. Two ovens: 35,000 BTU/hr. standard oven, 30,000 BTU/hr. for convection or innovection with porcelain interior and inside door panel, oven interior measures 26-1/2"W x 22-1/2"D x 13-1/2"H. Oven thermostat adjusts from 250°F to 500°F. All ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.
STANDARD FEATURES
- Restaurant Range, gas, 60"
- (4) 32,000 BTU open burners
- (1) 36" raised griddle/broiler on right
- 3/4" thick plate
- Manual controls
- (2) 26-1/2" standard ovens with (2) racks each
- Stainless steel front, sides
- Choice of high shelf and riser
- 20" riser or 6" stub back
- 6" adjustable chrome plated legs
- 76.0, kW, 258,000 BTU
- cETLus, ETL-Sanitation, Made in USA
- Commercial gas range 72" wide and 32 1/2" depth.
- Cooking height 36" and 44".
- Stainless steel sides, front and 6" deep front landing ledge.
- Adjustable steel legs (casters optional).
- Choose: 6" high stainless-steel stub back, high riser or high riser with shelf at no charge.
- Base options: Standard, convection, innovection or storage base.
STANDARD OVEN
- Sturdy, welded front frame provides stability to the range.
- Pull-off Stainless Steel door for easy cleaning.
- Oven dimensions: 26-1/2”W x 22-1/2”D x 13-1/2”H.
- Thermostat controls temperatre from 150°F to 500°F.
- One chrome plated oven rack. (Additional racks optional).
- Porcelain enamel finish inside oven bottom, sides, back, and door liner.
- Steel burner rated at 35,000 BTU/hr.
- 100% safety gas shut off.
- Matchless push button ignition to light a standing pilot.
OPEN BURNERS
- Heavy duty sectioned cast iron top grates.
- Two piece lift-off easy clean burners.
- Rated at 32,000 BTU/hr. each.
- One standing pilot for each burner, for instant ignition.
- Removable full-width drip pan.
GRIDDLES
- Highly polished thick steel griddle plate.
- 3” (76) wide grease drawer.
- One steel tube burner every 12” (305), rated at 20,000 BTU/hr.
- Stainless Steel pilot for each burner for instant ignition.
- Manual control valve for each burner.
- Stainless Steel spatula-width grease trough with landing ledge.
Available Options
- Swivel Casters (set of four – two with front brakes).
- Storage Cabinet Base. (In place of standard oven).
-
cETLus -
ETL-Sanitation
Reviews
Manufacturer Stock
Manufacturer Stock
Ships from Manufacturer
- (4) 32,000 Btu Open Burners
- (1) 36" Griddle/Broiler On Right
- 3/4" Thick Plate
- Manual Controls
- Stainless Steel
- 6" Adjustable Legs
Product Specifications
| Manufacturer | American Range |
|---|---|
| SKU | AR-4B-36RG-LP |
| Condition | New |
| Length (in.) | 60.00 |
| Depth (in.) | 28.5 |
| Height (in.) | 56 |
| Height Detail | 36 inch high cooking surface |
| Kilowatts | 76 |
| Total BTU | 258,000 |
| Number of Burners | 4 |
| Number of Ovens | 2 |
| Number of Burners | 4 Burners |
| Oven Type | Standard Oven |
| Number of Ovens | 2 |

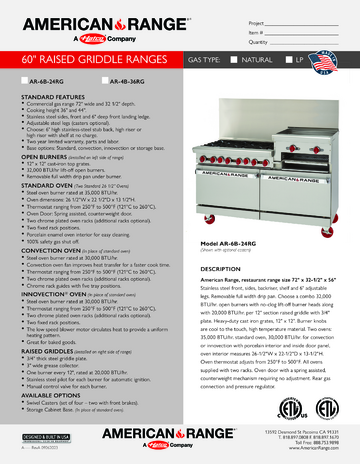

Documents
American Range Commercial Cooking Equipment
Based in Pacoima, California, American Range’s products are mainly concerned with cooking the food. Roasting, grilling, broiling, and griddling on a commercial scale. Apparatus available include deck pizza ovens, hot plates, salamanders, and fryers along with specialty kitchen equipment like Mongolian barbeque grills and verticle gyro grilling machines.
