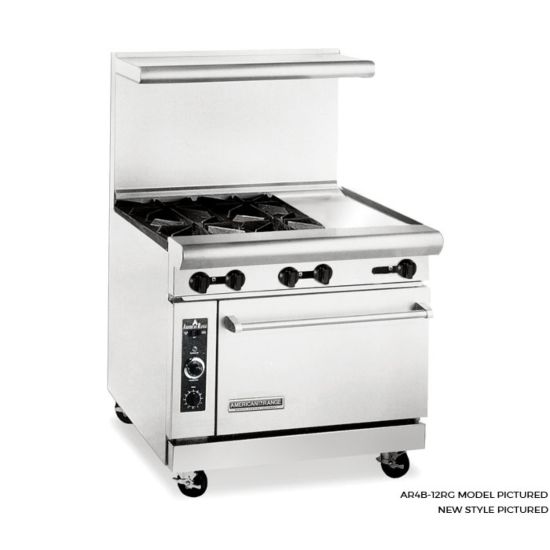

American Range AR-4B-12RG-NG 36" 4 Burner & 12" Raised Griddle Heavy-Duty Restaurant Range with Oven - Natural Gas 183,000 BTU

American Range, restaurant range size 72" x 32-1/2" x 56" Stainless steel front, sides, backriser, shelf and 6" adjustable legs. Removable full width drip pan. Choose a combo 32,000 BTU/hr. open burners with no-clog lift-off burner heads along with 20,000 BTU/hr. per 12" section raised griddle with 3/4" plate. Heavy-duty cast iron grates, 12" x 12". Burner knobs are cool to the touch, high temperature material. Two ovens: 35,000 BTU/hr. standard oven, 30,000 BTU/hr. for convection or innovection with porcelain interior and inside door panel, oven interior measures 26-1/2"W x 22-1/2"D x 13-1/2"H. Oven thermostat adjusts from 250°F to 500°F. All ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.

• Restaurant Range, Gas, 36"
• (4) 32,000 BTU Open Burners
• (1) 12"" Raised Griddle/Broiler On Right, 3/4" Thick Plate
• Manual Controls
• (1) 26-1/2" Standard Oven, (2) Racks
• Stainless Steel Front, sides
• Choice Of High Shelf And Riser, 20" Riser Or 6" Stub Back
• 6" Adjustable Chrome Plated Legs
• 54.0Kw, 183,000 Btu, Cetlus, Etl-Sanitation, Made is USA
• Commercial gas range 72" wide and 32 1/2" depth.
• Cooking height 36" and 44".
• Stainless steel sides, front and 6" deep front landing ledge.
• Adjustable steel legs (casters optional).
• Choose: 6" high stainless-steel stub back, high riser or high riser with shelf at no charge.
• Base options: Standard, convection, innovection or storage base.

• Sturdy, welded front frame provides stability to the range.
• Pull-off Stainless Steel door for easy cleaning.
• Oven dimensions: 26-1/2”W x 22-1/2”D x 13-1/2”H.
• Thermostat controls temperature from 150°F to 500°F.
• One chrome plated oven rack (Additional racks optional).
• Porcelain enamel finish inside oven bottom, sides, back, and door liner.
• Steel burner rated at 35,000 BTU/hr.
• 100% safety gas shut off.
• Matchless push button ignition to light a standing pilot.

• Heavy duty sectioned cast iron top grates.
• Two piece lift-off easy clean burners.
• Rated at 32,000 BTU/hr. each.
• One standing pilot for each burner, for instant ignition.
• Removable full-width drip pan.

• Highly polished thick steel griddle plate.
• 3” (76) wide grease drawer.
• One steel tube burner every 12” (305), rated at 20,000 BTU/hr.
• Stainless Steel pilot for each burner for instant ignition.
• Manual control valve for each burner.
• Stainless Steel spatula-width grease trough with landing ledge.

• Swivel Casters (set of four – two with front brakes).
• Storage Cabinet Base. (In place of standard oven).
