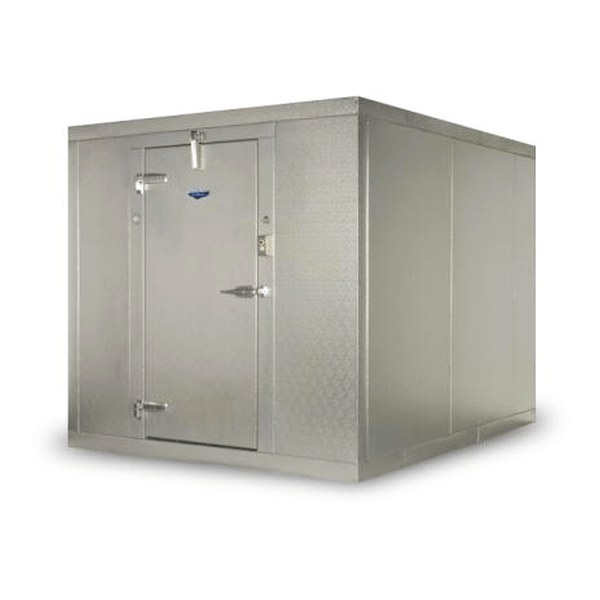

Mr Winter 6X6FWF (6'x6') Walk-In Freezer Box with Floor

$5,063.00
  • 26-gauge stucco embossed finish
  • 4" Thermal resistant panel
  • NSF approved gasket
  • Self-closing door hinge
Specification
Manufacturer Mr Winter
Model # 6X6FWF
Special Order Yes
Condition New
Length (in.) 72
Length Detail 6 Feet
Depth (in.) 72
Depth Detail 6 Feet
Height (in.) 90
Height Detail 7 Feet 6 Inches
Total Cubic Feet 252
Approval NSF, EISA
View Spec Sheet Spec sheet Manual
Approvals
NSF, EISA
Commercial Use Only
  • 26-gauge stucco embossed finish
  • 4" Thermal resistant panel
  • NSF approved gasket
  • Self-closing door hinge
Description

Mr. Winter is a Walk-In Cooler and Freezer manufacturer out of Florida. All Walk-In units are USA made and feature USA built Tecumseh compressors. Walk-in freezers are primarily used in low temperature applications. Freezers are used to freeze or maintain frozen products. Temperature ranges for freezers are usually between -20 to 0F. All freezers require an insulated floor that is built in with the unit. All our freezers meet and exceed all government requirements.

FINISH
Walls and ceilings: Standard 26 Gauge Stucco Embossed Galvalume Finish with a weather Protective aluminum and zinc alloy, 26 Gauge Stucco Embossed White Galvalume or 26 Gauge Stainless Steel 2B Finish with PVC.

FLOORS
Heavy gauge smooth aluminum. Optional Stainless Steel & Marine Plywood Reinforcement.

INSULATION
4” TRP for walk-in coolers and freezers. EISA of 2007 & US D.O.E Certified Compliant.

COOLERS
4” Thermal Resistant Panel*
ASTM Test C-518
Flame spread and smoke development 5/190 ASTM Test E84

FREEZERS
4” Thermal Resistant Panel*
ASTM Test C-518
Flame spread and smoke development 15/250 ASTM Test E84

JOINT
Panels have factory installed, NSF approved gasket, which insures a proper seal and better appearance. Standard gaskets are 1/8” closed cell neoprene.

DOORS
Standard door size is 34” X 76”. Includes: Self closing hinges, automatic door closer, keyed entry latch with interior safety release, vapor proof light fixture, pilot light switch and dial thermometer. Freezer doors include anti condensate heater wire and pressure relief vent.

CONSTRUCTION
Panel facing shall be laminated to rigid insulation with urethane based adhesive under pressure to insure a strong and permanent bond. Panels are of 100% insulation (non wood construction) and all panel edges are tongue and groove. Panel connectors are factory installed rotary cam type speed locks. Floor panels are designed to sustain a load of 500 lbs. per square foot. Where floor panels are not required, 1” x 1” aluminum angle or NSF plastic screed will be furnished to insure a proper seal. Optional reinforcements can be added for heavier loads.

INSTALLATION
To help reduce installation time, all panels are marked to correspond with the installation drawing supplied by the factory. Also provided, one allen wrench along with miscellaneous installation materials.

*All units are NSF Listed, EISA Compliant, 100% Made in the USA

*Remote Condensing Units / Compressors are USA built Tecumseh Brand with 1 Manufacturer Year Warranty.

*Loose Parts Included: Expansion Valve, Sight Glass and Drier, Solenoid Valve with Coil, Thermostat, Timer, Drain Line Heater, Crank Case Heater, Fan Cycle Control

*Upon purchase you will be provided a technical drawing where you will choose door location and hinge position.
