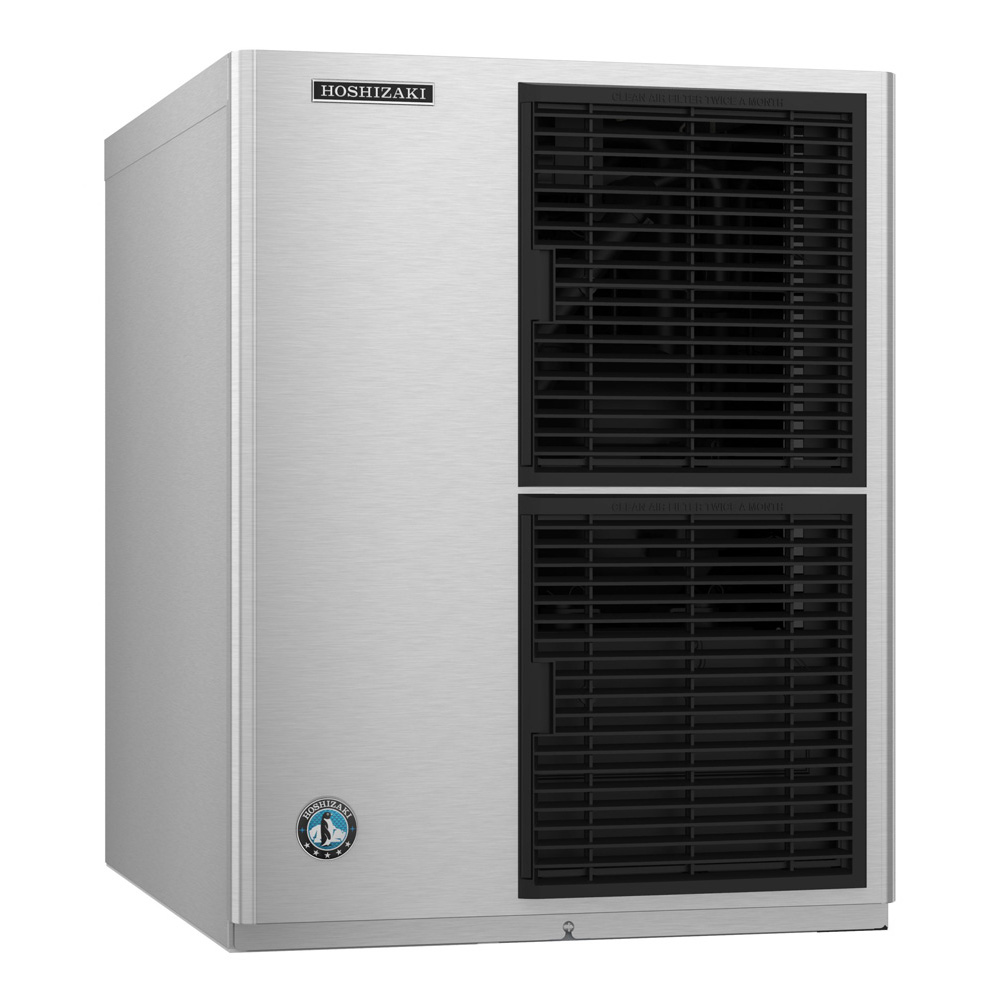

Hoshizaki KM-522MAK 22" 548 lb. Slim-Line Modular Crescent Cuber Ice Machine, Air-Cooled
The KM-522MAK produces up to 548 lbs. of crescent ice per day, making it a dependable choice for high-demand commercial applications. This air-cooled, slim-line modular unit features an efficient CycleSaver™ design, EverCheck™ alert system for added peace of mind, and CleanAssist for simplified maintenance. Ultrasonic bin control helps maintain consistent ice levels for reliable, day-to-day performance.
Standard Features
- Ice Maker, cube-style
- 22"W
- Air-cooled, self-contained condenser
- Production capacity up to 548 lb./24 hours at 70°F/50°F (445 lb. AHRI certified at 90°F/70°F)
- KMEdge™ crescent style cube
- CycleSaver™ design
- EverCheck™ alert system
- Removable air filter
- Stainless steel finish
- R290 refrigerant
- 115v/60/1-ph
- 10.8 amps
- NSF, UL, ENERGY STAR®
Features
- Durable construction with fewer parts
- Self-diagnostic programming automatically adjusts to changing conditions
- Snap-fit parts for easy cleaning
- Stainless steel double-sided evaporator
- CycleSaver design
- EverCheck alert system
- Removable air filters
- Individual crescent cube
- Factory-installed ultrasonic bin control can be adjusted on site
- Environmentally friendly R290 hydrocarbon refrigerant
- Simple, one-hour cleaning process
-
ENERGY STARThis item is ENERGY STAR certified by the U.S. Environmental Protection Agency, indicating it meets strict energy-efficiency requirements verified through third-party certification.
-
NSFThis item is certified by NSF, indicating it meets the applicable public health, safety, and sanitation requirements for the standard under which it was evaluated.
-
ULThis item is UL certified, showing it has been evaluated by UL Solutions for compliance with applicable safety requirements.
Reviews
Deliver to
- Free
Estimate Shipping
- Cube-Style
- Air-Cooled
- Self-Contained Condenser
- Production Capacity Up To 548 Lb/24 Hr
- Removable Air Filter
- Stainless Steel Finish
Product Specifications
| Manufacturer | Hoshizaki |
|---|---|
| SKU | KM-522MAK |
| Condition | New |
| Length (in.) | 22 |
| Depth (in.) | 27.38 |
| Height (in.) | 28 |
| Volts | 115 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 10.8 |
| 24 Hour Ice Yield | 548 lb. |
| Condenser Type | Air Cooled |
| Exterior Material | Stainless Steel |
| Ice Type | Crescent Cube |
| Installation Type | Modular |
| Ice Volume Yield | 301-1000 lbs/day |
| Cooling System Type | Air Cooled |

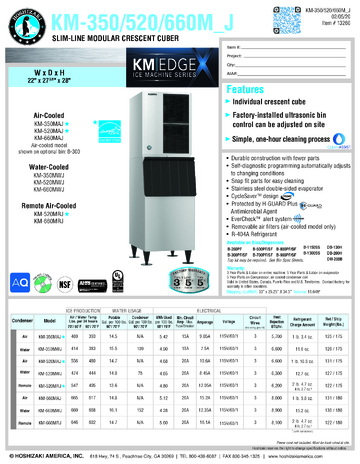

Documents
Hoshizaki mission is to achieve and maintain optimum customer satisfaction, by consistently providing the highest level of quality in the products and services delivered to all customers throughout the western hemisphere; to perpetuate a healthy, viable organization; and to deserve the reputation as an innovative leader from a technological and people standpoint in the commercial kitchen equipment industry.
3 Year Parts & Labor, 5 Year Compressor
