Fagor CO-500W 24" High Temp Commercial Undercounter Dishwasher, Glasswasher & Sanitizer - 30 Racks/Hr
SKU: CO-500W
Fagor CO-500W 24" High Temp Commercial Undercounter Dishwasher, Glasswasher & Sanitizer - 30 Racks/Hr
Fagor’s Concept range of dishwashers combines features and benefits that only high-end ranges are offering, becoming in a product easy to use and efficient, with the most effective and robust technology prepared for the strongest usage of the market. Built in durable stainless steel with electromechanical components and simple controls with temperature display for a user-friendly operation.
Effi Wash: Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.
Effi Silent: Full double skin provides extra insulation on body and door for noise reduction and thermal efficiency.
Soft Start: Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level.
Hot water assurance: Working in series with the booster heater, this relay ensures the time will not advance to the rinse cycle until the sanitation temperature of the rinse water (180 F) is met.
Easy to use: Simple control panel with temperature display, IPX-4 proof.
Versatile: Easily configure your dishwasher as a glass-washer or sanitizer whenever you need it.
Standard Features
- EVO CONCEPT (19068497) Dishwasher
- Undercounter
- IPX4 electronic controls
- High temperature with built-in 70 deg. rise booster
- 1 wash cycle (120)
- Gallons per cycle: 0.63 gals
- Rinse pressure: 20-25psi
- (30) racks/hour capacity
- Type 304 stainless steel construction
- Stamped one piece tank
- Double skin sides & counterbalanced insulated door
- 15-1/4" clearance for ware
- Auto-fill
- Electric tank heat
- Soft start
- Built-in drain pump & pressure gauge
- Detergent & rinse aid dispenser
- Adjustable legs
- Includes (1) 20"x20" flat rack
- (1) 20"x20" peg rack & (1) cutlery container
- 3/4 HP motor
- 3.5 kW total
- ETL|cETLus|CE|ENERGY STAR
Construction
- Double skin stainless steel body structure with stamped design (wash tank, rack guides, control panel..), made to resist strong usage.
- AISI-304 Stainless steel double wash / rinsing arms and tray filters.
- Higher clearance: 15 1/4”.
- Rock counterbalanced door. Double spring and stainless steel hinge system tested to resist the strongest usage. Safe 3 step open system: remove steam (1), check rack (2), and remove/ place rack (3).
- IPX4 - Stronger protection against water hose cleaning and external humidity.
- Built-in drain pumps, detergent, and rinse aid dispenser.
- Built-in pressure gauge and anti-return valve.
Optional Accessories
- 19000484 - All Purpose Rack, for 20" x 20" rack
- 19000487 - Peg Rack, for 20" x 20" rack
- 19000489 - Glass Rack, 16 compartments, for 20" x 20" rack
- 19000492 - Glass Rack, 25 compartments, for 20" x 20" rack
- 19000495 - Glass Rack, 36 compartments, for 20" x 20" rack
- 19000792 - Cutlery container for 16" x 16" rack
- 19001720 - Cutlery Grid, for 20" x 20" rack
- 19031197 - Tray Rack, for 20" x 20" rack
- N-170-M2 - Drain water tempering value
- BSD-6 (19102249) - Stand for undercounter dishwasher, 6"H base
- EVPL-60 (19004660) - 16" High stand
-
cETLus -
ENERGY STAR -
ETL-Sanitation
Product Features
-
EFFI-RINSE
The EFFI-RINSE system guarantees a perfect, hygienic result with a complete, linear rinse cycle at 85ºC thanks to the built-in rinsing pump and the Air Break system design. It also works with low input water pressure, making it the perfect system when the mains water of the installation does not reach the minimum recommended pressure of 2 bars. -
EFFI-SILENT
E-vo Generation has been built with a single idea in mind: creating a single body which is full of benefits for all three ranges. Thanks to this, even our most basic range features a double-walled design. This helps soundproof the machine, creating a much more tranquil environment. -
Large Opening
Using our special basket CB7-GN, E-VO CONCEPT, CONCEPT PLUS and ADVANCE undercounters and hood-type machines are able to wash perfectly GN 1/1 trays. A huge advantage for our customers, thanks to its 380 mm clearance for undercounters -
Safe Filtering
Consists in a simple 3 steps filtering system for big, medium and small size dirtiness particles; allowing to keep the wash tank water clean for a longer period of time. -
Soft Start
It reduces the noise levels of the bar or restaurant where it is fitted and stops glasses and plates from moving inside the basket, protecting them against breakage and improving the wash cycle for all dishware. -
Temperature Display
Available on both our Concept Plus and Concept front-loading dishwashers. It shows the operating temperature of the machine, allowing you to quickly and visually check that the machine is operating within the suitable parameters. -
Thermo Stop
Thanks to Thermostop, the dishwasher won’t start rinsing until it reaches the ideal rinsing temperature, 85 °C. When enabled, and if necessary, Thermostop extends the wash cycle until the boiler reaches a rinse temperature that ensures correct sanitisation according to hygiene standards. Some models leave the factory with this mode deactivated, but it can be easily activated.
Reviews
Manufacturer Stock
Manufacturer Stock
Ships from Manufacturer
- (1) 20"X20" Flat Rack, (1) 20"X20" Peg Rack Included
- Hold 1 Rack Total
- (30) Racks/Hour Capacity
- Gallons Per Cycle: 0.63 Gals
- Type 304 Stainless Steel Construction
- Adjustable Legs
Product Specifications
| Length (in.) | 23.63 |
|---|---|
| Horsepower | 3/4 HP |
| Capacity | 30 Racks/Hr |
| Condition | New |
| Volts | 208-230 |
| Exterior Material | Stainless Steel |
| Manufacturer | Fagor |
| Depth (in.) | 24.81 |
| Hertz | 60 |
| SKU | CO-500W |
| Phase | 1 |
| Height (in.) | 33.69 |
| Watts | 3.5 |

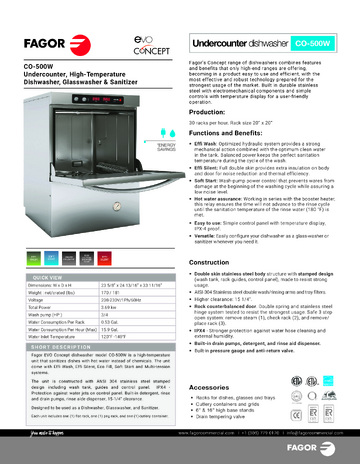

Documents
Fagor Quality Commercial Dishwashers
Fagor is one of the few brands at international level to manufacture such a broad range of products like ovens, cooking equipment, dishwashers, laundry equipment, industrial cold refrigeration and buffets or stainless steel elements made to measure.
1 Year Parts & Labor
For Commercial Use Only
