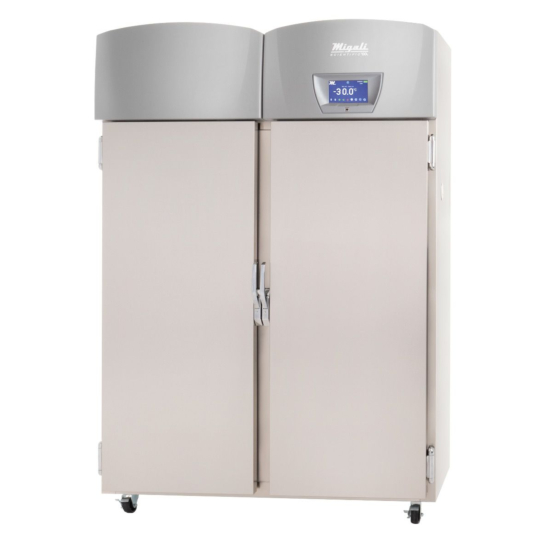

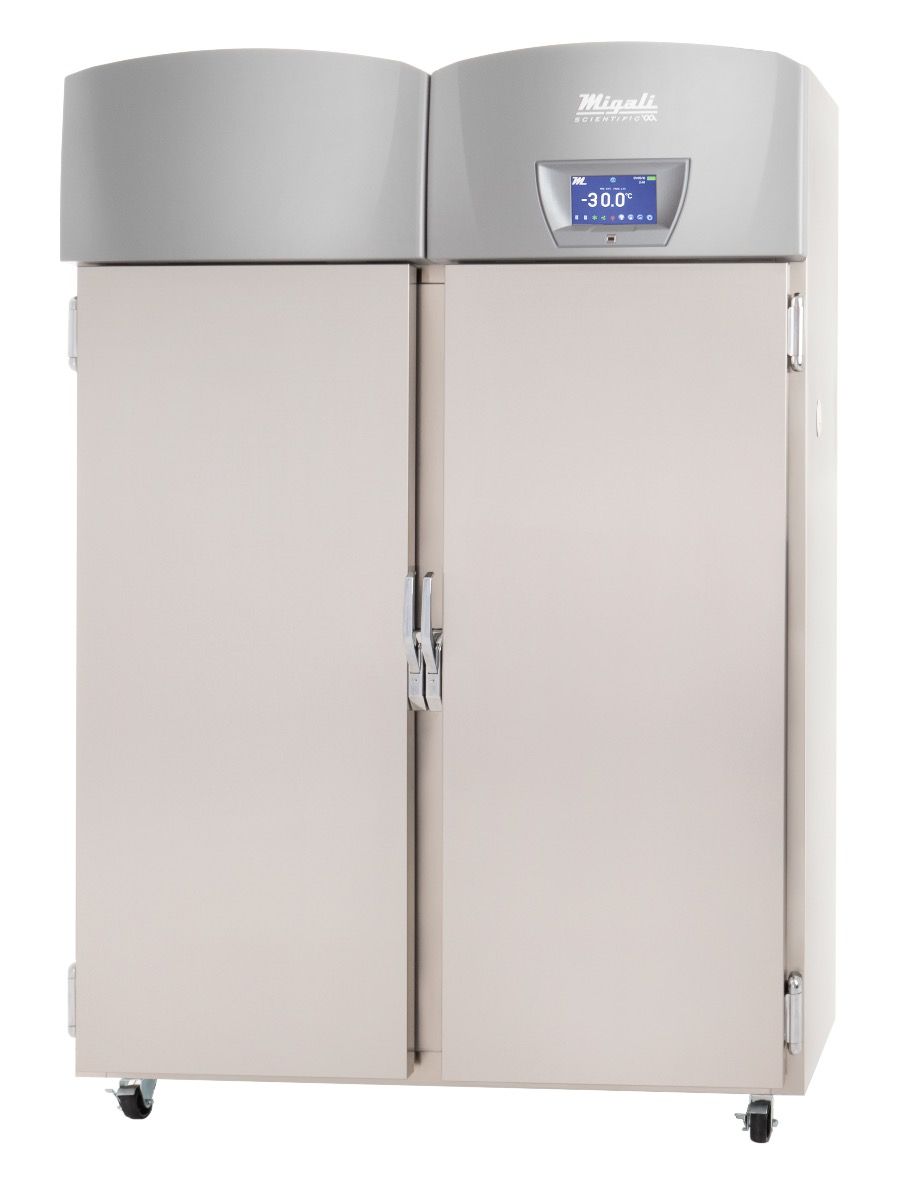

Migali Scientific EVOx-2F-BB 55" Two Solid Door Upright Medical Freezer - 55 Cu. Ft.
Migali Scientific EVOx-2F-BB 55" Two Solid Door Upright Medical Freezer - 55 Cu. Ft.
Bullets list
- Medical Freezer, -30F
- Two Solid Doors
- 55 Cu ft 220V /60 Hz
- 55"L x 35"D x 80.13"H
Migali Scientific EVOx-2F-BB 55" Two Solid Door Upright Medical Freezer - 55 Cu. Ft.
The model EVOX-2F is the Evolution Series® 44.9 cu/ft two solid door, auto-defrost upright freezer with an operating temperature of -25°C (will not exceed -15°C in defrost). Evolution Series® models are purpose-built to meet and exceed CDC, AAP, AABB, USP, NIH & WHO guidelines for storing pharmaceuticals, vaccines, blood, biologics, NICU, OR and medical products The EVOX-2F incorporates an expansion valve refrigeration system for rapid temperature recovery, superior temperature stabilization and uniform chamber temperature.
The EVOX-2F includes 44.9 cu/ft of internal space and comes standard with (12) adjustable shelves, door locks and optional stainless steel drawers. The cabinet is constructed of heavy duty 304 S/S to prevent bacterial growth. The doors include heady-duty, side mount hinges along with a heavy duty, chrome positive latch door handles. Evolution Series® models come with healthcare refrigeration’s most extensive warranty: 7 years compressor, 2 years parts, 1 year labor warranty.
Medical Freezer Features
- Beautiful, modern and ergonomic design
- Purpose-built to exceed CDC, AAP, AABB, USP, NIH & WHO guidelines for storing pharmaceuticals, vaccines, blood, biologics, NICU, OR and medical products
- Expansion valve refrigeration system for rapid temperature recovery, superior temperature stabilization and uniform chamber temperature
- Auto defrost freezer system maintaining -25°C to -30°C (not exceeding -15°C in defrost cycle)
- Fan delay switch to conserve power, maintain inside chamber temperature during door openings & reduce inside chamber humidity
- 2 & 3/8” probe access port for 3rd party monitoring systems
- Product simulator and bracket
- Magnetic door gasket for positive seal
- Chrome positive latch door handles with locks and keys
- Lifetime warranty heavy duty chrome side mounted hinges
- Powder coated adjustable wire shelving, 125 lbs capacity per shelf
- CFC free, eco-friendly refrigerant
- High R-value 2 3/4” inch of polyurethane insulation to reduce heat transfer and increase temperature stabilization
- Hospital grade plug with power cord warning label
- Hinged control panel for easy maintenance of condenser coil
- (2) locking casters and (2) non-locking casters
- ETL Certified (meets UL for electrical safety)
- Meets USP guidelines
- Listed under GSA Advantage for USA Government Purchases
- *Vaccine models include a freestanding thermometer with 3 year certificate of calibration
Migali® IntelVU® Digital Temperature Monitoring System
- Digital temperature monitoring 24 hours/day, 7 days/week
- Detailed temperature trend chart recording
- Navigate between menus with touch and drag
- Integrated 4.3” LED full color touch screen
- Digital microprocessor for precise temperature control
- Temperature audible/visual hi/low temperature alarms
- Power failure alarm
- Sensor failure alarm
- Alarm mute button
- 2 gigabits SD card file data storage
- 2.5 years of temperature data storage
- USB downloadable temperature history
- Adjustable temperature settings
- Interchangeable between celsius and fahrenheit scales
- Advanced password protection
- RS-292, RS-485 ports for wireless connections
- (2) probes and set points (air & product simulator)
- Built-in web server for remote access
- Digital signature to comply with FDA guidelines
Approvals
-
CDC
-
AAP
-
AABB
-
USP
-
NIH
-
WHO
Product Specifications
Manufacturer | Migali Scientific |
---|---|
SKU | EVOx-2F-BB |
Condition | New |
Length (in.) | 55.00 |
Depth (in.) | 35 |
Height (in.) | 80.1 |
Horsepower | 1 1/2 HP |
Volts | 208-230 |
Hertz | 60 |
Phase | 1 |
Amps | 10 |
Nema Plug | L14-20P |
Approval | CDC, AAP, AABB, USP, NIH, WHO |
Casters | Yes |
Cubic Feet | 44.9 |
Exterior Material | Stainless Steel |
Exterior Color | Stainless Steel |
Interior Material | Stainless Steel |
Interior Length | 50 |
Interior Width | 27.5 |
Interior Height | 56.375 |
Refrigerant | R404a |
