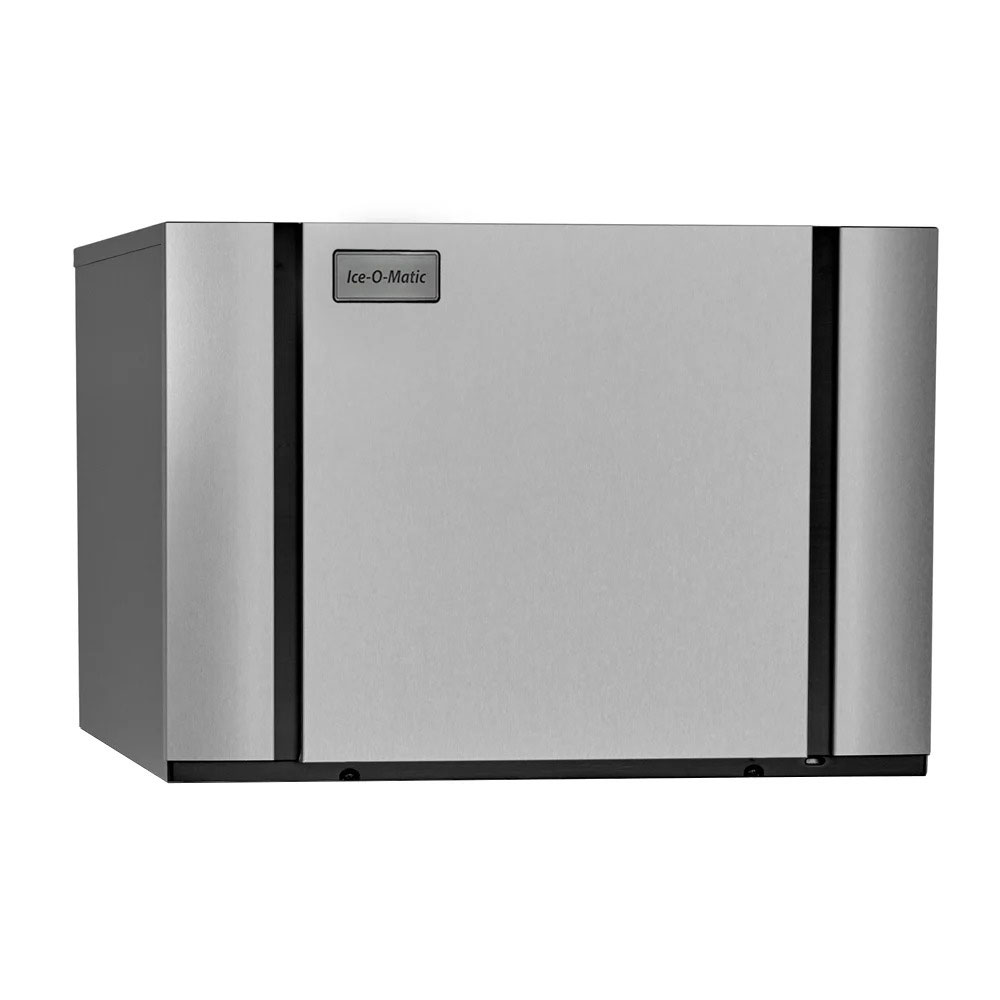

Ice-O-Matic CIM2046FR 48" 1830 lb. Full Cube Remote Cooled Modular Ice Machine
Ice-O-Matic CIM2046FR 48" 1830 lb. Full Cube Remote Cooled Modular Ice Machine
Bullets list
- Full Cube / Remote Cooled
- Up to 1,830 lb. of Ice / Day
- Antimicrobial Protection
- Effortless Wipe Down & Long Lasting Sanitation
- Unique Dual Exhaust
- Universal Smart Harness Control Board
Ice-O-Matic CIM2046FR 48" 1830 lb. Full Cube Remote Cooled Modular Ice Machine
ELEVATION SERIES - THE MOST ESSENTIAL INGREDIENT - The new and groundbreaking Elevation Series from Ice-O-Matic is designed to simplify life. Our cube ice machines are easy to clean, easy to service, simple to operate, and environmentally responsible without sacrificing productivity. The Elevation Series provides clean, dependable ice from an astonishingly user-friendly and energy-efficient machine designed to work as hard as you.
The CIM2046/2047 modular cube ice machine offers a safe and user-friendly machine packed with innovative features to simplify life.
ONE TOUCH CLEANING
One touch to sanitize, one touch to de-lime. LEDs signal when cleaning is required.
Sanitation has never been easier. Unique plastic food zone parts snap in and out and are dishwasher safe.
Groundbreaking technology allows hot-air discharge from the side or the top of every unit.
No bottle brushes required. Easily removed and disassembled for cleaning. Dishwasher safe.
STANDARD FEATURES
- 60 Hz and 50 Hz models
- Remote or Water Cooled units available
- Exclusive Dual Exhaust on Air Cooled units
- 48.25" (1,226 mm) wide space-saving design
- Full or Half cube
- Up to 1,860 lbs. (844 kg.) production in a 24 hour period
- Warranty - 3 years parts/labor; 5 years parts evaporator/compressor; 7 years evaporator with water filter
- 48.25" (1,226 mm) wide x 24.25" (616 mm) deep x 26.9" (689 mm) height
Approvals
-
cULus
-
NSF
-
CE
Documents
Product Specifications
Manufacturer | Ice-O-Matic |
---|---|
SKU | CIM2046FR |
Condition | New |
Length (in.) | 48.25 |
Depth (in.) | 24.25 |
Height (in.) | 26.9 |
Volts | 208-230 |
Hertz | 60 |
Phase | 1 |
Kilowatts | 4.31 |
Amps | 25.6 |
Hardwired | Yes |
24 Hour Ice Yield | 1830 lb. |
Approval | cULus, NSF, CE |
Condenser Type | Air Cooled |
Ice Type | Full Cube |
Installation Type | Modular |
Refrigerant | R404a |
Ice Volume Yield | > 1000 lbs/day |
Cooling System Type | Air Cooled |
