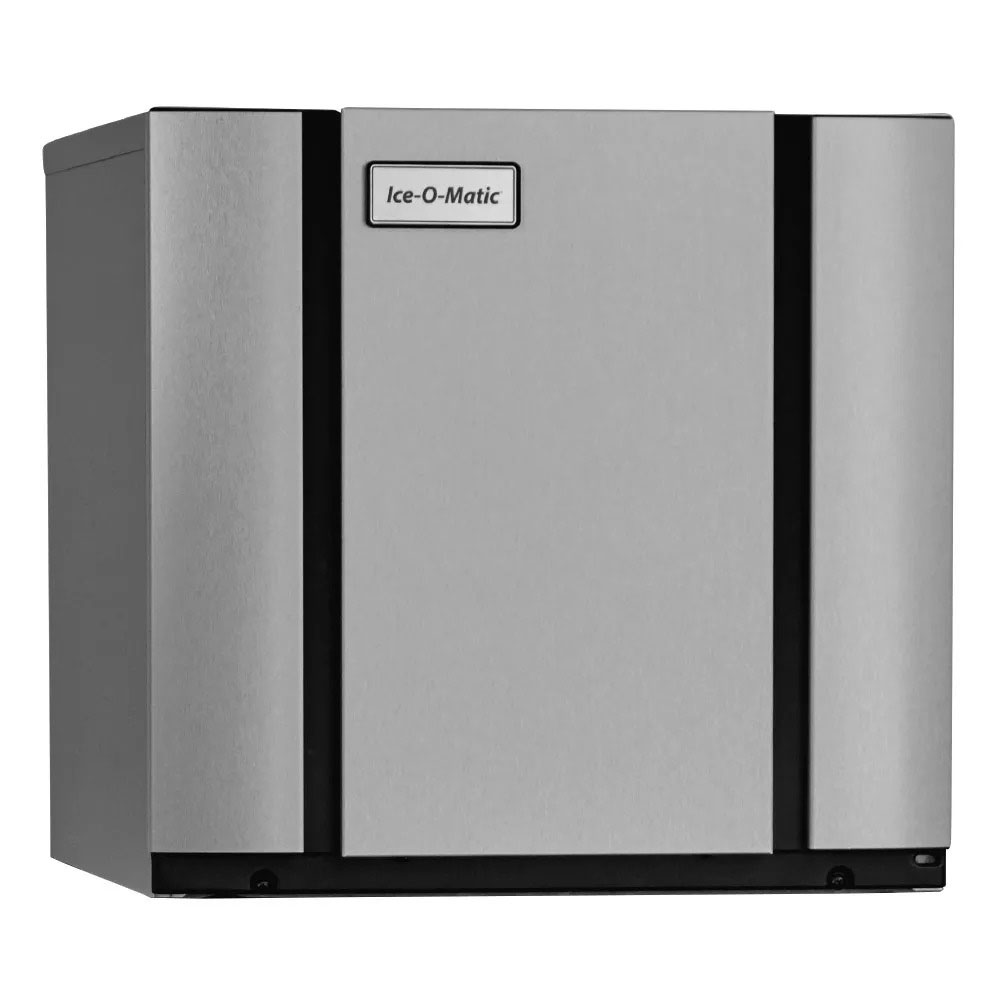

Ice-O-Matic CIM0520HW 22" 586 lb. Half Cube Water Cooled Ice Machine - Modular Self-Contained
Ice-O-Matic CIM0520HW 22" 586 lb. Half Cube Water Cooled Ice Machine - Modular Self-Contained
Bullets list
- Half Cube / Water Cooled
- Up to 586 lb. of Ice / Day
- Antimicrobial Protection
- Effortless Wipe Down & Long Lasting Sanitation
- Unique Dual Exhaust
- Universal Smart Harness Control Board
Ice-O-Matic CIM0520HW 22" 586 lb. Half Cube Water Cooled Ice Machine - Modular Self-Contained
ELEVATION SERIES - THE MOST ESSENTIAL INGREDIENT - The new and groundbreaking Elevation Series from Ice-O-Matic is designed to simplify life. Our cube ice machines are easy to clean, easy to service, simple to operate, and environmentally responsible without sacrificing productivity. The Elevation Series provides clean, dependable ice from an astonishingly user-friendly and energy-efficient machine designed to work as hard as you.
The CIM0520/0526/0525 modular cube ice machine offers a safe and user-friendly machine packed with innovative features to simplify life.
ONE TOUCH CLEANING
One touch to sanitize, one touch to de-lime. LEDs signal when cleaning is required.
Sanitation has never been easier. Unique plastic food zone parts snap in and out and are dishwasher safe.
Groundbreaking technology allows hot-air discharge from the side or the top of every unit.
No bottle brushes required. Easily removed and disassembled for cleaning. Dishwasher safe.
STANDARD FEATURES
- 60 Hz and 50 Hz models
- Air, Remote or Water Cooled units available
- Exclusive Dual Exhaust on Air Cooled units
- 22.25" (565 mm) wide space-saving design
- Full or Half cube
- Up to 586 lbs. (266 kg.) production in a 24 hour period
- Warranty - 3 years parts/labor; 5 years parts evaporator/compressor; 7 years evaporator with water filter
- 22.25" (565 mm) wide x 24.25" (616 mm) deep x 21.25" (540 mm) height
Approvals
-
cULus
-
NSF
-
CE
Documents
Product Specifications
Manufacturer | Ice-O-Matic |
---|---|
SKU | CIM0520HW |
Condition | New |
Length (in.) | 22.25 |
Depth (in.) | 24.25 |
Height (in.) | 21.3 |
Volts | 115 |
Hertz | 60 |
Phase | 1 |
Kilowatts | 4.7 |
Amps | 17.4 |
Hardwired | Yes |
24 Hour Ice Yield | 586 lb. |
Approval | cULus, NSF, CE |
Condenser Type | Water Cooled |
Ice Type | Half Cube |
Installation Type | Modular |
Refrigerant | R404a |
Ice Volume Yield | 301-1000 lbs/day |
Cooling System Type | Water Cooled |
