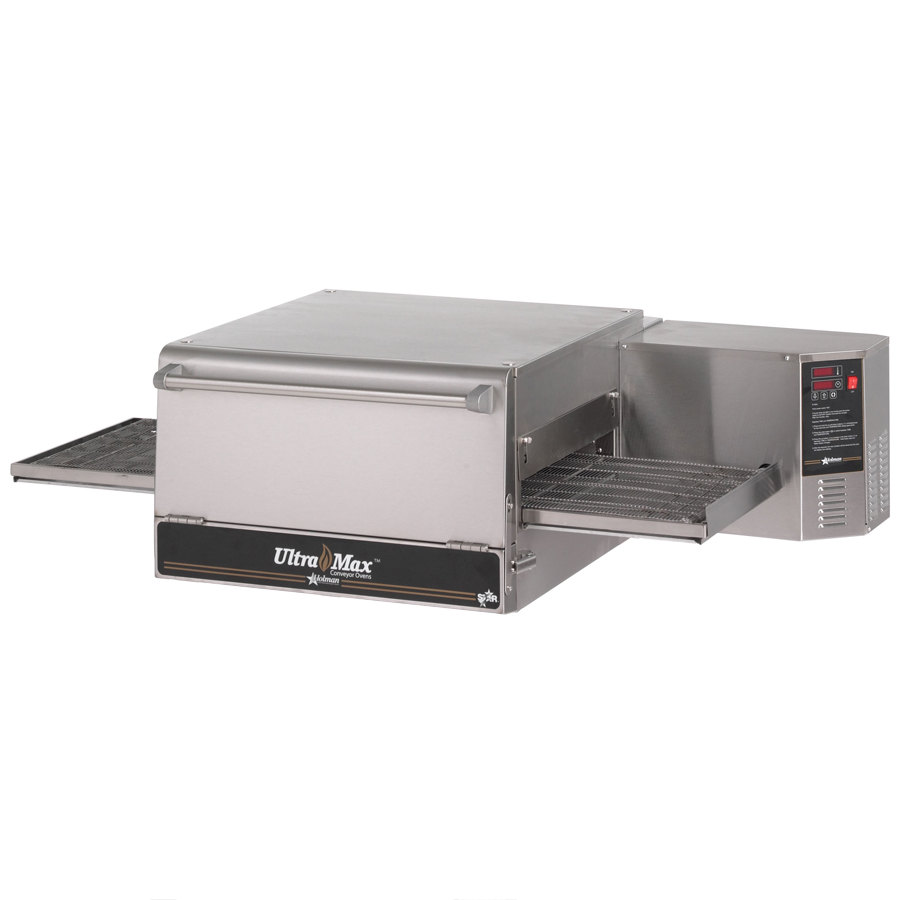

Star Ultra-Max UM1854-NG Natural Gas Impingement Conveyor Oven - 40,000 BTU

$18,865.55 Chat for info
  • 18” Wide Stainless Steel Conveyor Belt
  • Powerful 40,000 BTU Stainless Steel Burner
  • Easy-To-Use Electronic Controls
  • Space Saving Design
  • Auxiliary Fan
Manufacturer Star
Condition New
Length (in.) 30
Depth (in.) 40
Height (in.) 24
Volts 120
Hertz 60
Phase 1
Amps 0.5
Nema Plug 5-15P
Approval UL
Total BTU 40,000
Gas Inlet Size 1/2"
Deck Quantity Single Deck
View Spec Sheet Spec sheet
Commercial Use Only
  • 18” Wide Stainless Steel Conveyor Belt
  • Powerful 40,000 BTU Stainless Steel Burner
  • Easy-To-Use Electronic Controls
  • Space Saving Design
  • Auxiliary Fan

Star Manufacturing provides standard & specialized products proudly made in Tennessee.

Known for Innovation, Technology and Performance, the Star Manufacturing Company is among the largest manufacturers of heavy duty commercial cooking equipment in the world.

The Ultra-Max gas oven is designed for a variety of foodservice operations. Ultra-Max oven uses hot air under pressure to deliver unmatched performance and speed. Air impingement seals in moisture and avor providing superior food quality plus the air ow design bakes more evenly than traditional ovens resulting in more consistency from the rst bake to the last. Front access hinged door is standard for products requiring manual placement inside bake chamber with no expensive window option required. Access door allows operator to change nozzle plates in seconds.

Ultra-Max gas oven is constructed of stainless and aluminized steel. Oven is designed with stainless steel front door and stain- less steel handle for access to cooking chamber, cleaning and changing of nozzle plates. Unit is designed with state-of-the- art electronic controls to set time, temperature, belt direction, Fahrenheit/Celsius conversion, manager lock-out and diagnostic feature. Large LED display provides easy-to-read panel for time, temperature and programming. Baking chamber is 28” long with 3.5” product opening. The stainless steel conveyor belt is 18” wide and 54” long with conveyor end stop. Conveyor belt is driven with a heavy-duty brushless DC reversible motor. Powerful steel cen- trifugal fan and motor deliver hot air to cooking ducts and motor has an auxiliary fan to provide cool air for control area. Stainless steel 40,000 BTU burner has automatic ignition and does not require separate primary air blower. Stainless steel control box has hinged panel for easy access in single, double or triple stack con gurations. Unit is available in natural or propane gas. Ovens on portable stands must have approved exible gas connector (maximum 6’) and restraining device to prevent damage to gas line. Optional custom stainless steel stand bolts directly to base of unit.

Standard Features

  • 18 in. (0.46 m) wide, 54 in. (1.37 m) long stainless steel conveyor belt, 28 in. (0.71 m) cooking chamber, and adjustable 3.5 in. (89 mm) product openings accommodate a wide variety of products
  • Powerful 40,000 BTU stainless steel burner
  • Easy to use electronic controls with LED display
  • Heavy-duty, drop-down style stainless steel door for easy product access and nozzle plate access
  • Space saving design allows stacking of two ovens when using either optional legs or stand with casters
  • Auxiliary fan pulls in outside air to cool control box keeping key components cooler resulting in longer life
