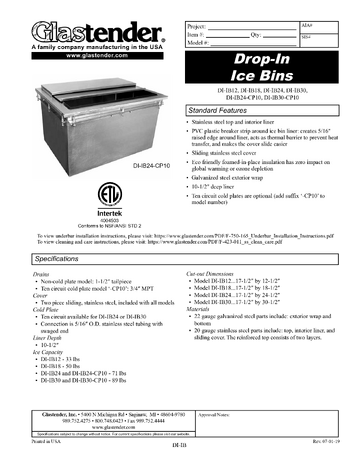

Glastender DI-IB24 26" x 19" Drop-In Ice Bin

At Glastender, we've built our reputation as pioneers in bar fabrication, refrigeration, and more. Now we're looking for leaders like you to help us shape the future.

• Ice Bin, drop-in, 26"W x 19"D
• 71 lbs ice capacity
• 10-1/2" deep liner
• PVC plastic breaker strip
• Sliding 2-piece stainless steel cover
• Includes mounting hardware
• Stainless steel top & liner
• Galvanized exterior wrap & bottom
• 24-1/2" x 17-1/2" cutout required
• ETL-Sanitation

• Stainless steel top and interior liner
• PVC plastic breaker strip around ice bin liner: creates 5/16" raised edge around liner, acts as thermal barrier to prevent heat transfer, and makes the cover slide easier
• Sliding stainless steel cover
• Eco friendly foamed-in-place insulation has zero impact on global warming or ozone depletion
• Galvanized steel exterior wrap
• 10-1/2" deep liner
• Ten circuit cold plates are optional (add suffix '-CP10' to model number)

• Drains:
  • Non-cold plate model: 1-1/2" tailpiece
  • Ten circuit cold plate model '-CP10': 3/4" MPT
• Cover: Two piece sliding, stainless steel, included with all models
• Cold Plate:
  • Ten circuit available for DI-IB24 or DI-IB30
  • Connection is 5/16" O.D. stainless steel tubing with swaged end
• Liner Depth: 10-1/2"
• Ice Capacity:
  • DI-IB12 - 33 lbs
  • DI-IB18 - 50 lbs
  • DI-IB24 and DI-IB24-CP10 - 71 lbs
  • DI-IB30 and DI-IB30-CP10 - 89 lbs
• Cut-out Dimensions:
  • Model DI-IB12...17-1/2" by 12-1/2"
  • Model DI-IB18...17-1/2" by 18-1/2"
  • Model DI-IB24...17-1/2" by 24-1/2"
  • Model DI-IB30...17-1/2" by 30-1/2"
• Materials:
  • 22 gauge galvanized steel parts include: exterior wrap and bottom
  • 20 gauge stainless steel parts include: top, interior liner, and sliding cover. The reinforced top consists of two layers
