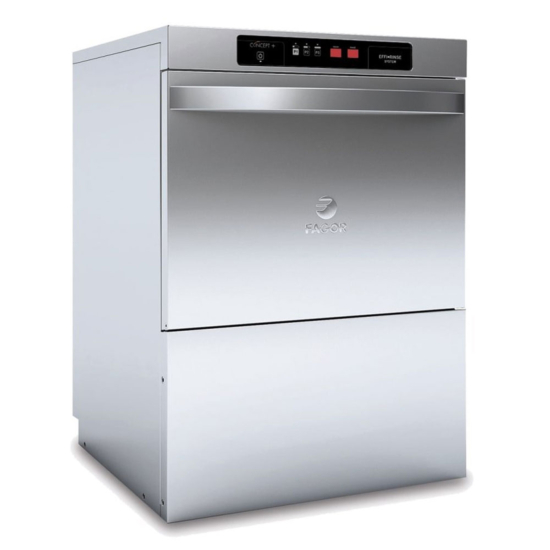

Fagor COP-504W 24" Commercial High Temp Undercounter Dishwasher | 37 Racks/Hr

Estimated to Ship in 1-4 Business Days
  • Highest rated Fagor undercounter dishwasher
  • Superior sanitation vs low temp washers
  • ENERGY STAR qualified glasswasher
  • High 180°F temp kills bacteria
  • Built in pressure pump
Specification
Manufacturer Fagor
SKU COP-504W
Condition New
Length (in.) 23.60
Depth (in.) 23 3/5
Height (in.) 32.75
Volts 220
Hertz 60
Phase 1
Kilowatts 3.7 / 4.6 / 6.5
Amps 28 / 20 / 16
Horsepower 3/4 HP
Nema Plug 6-20P
Approval ETL, cETLus, CE, EnergyStar

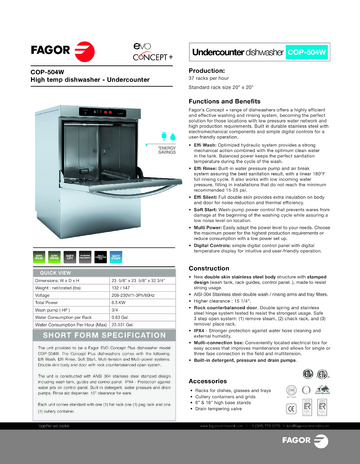

View Spec Sheet Spec sheet
Warranty
1 Year Manufacturer Warranty
Approvals
ETL, cETLus, CE, EnergyStar
Commercial Use Only
  • Highest rated Fagor undercounter dishwasher
  • Superior sanitation vs low temp washers
  • ENERGY STAR qualified glasswasher
  • High 180°F temp kills bacteria
  • Built in pressure pump
Description

Fagor’s Concept+ range of dishwashers offers a highly efficient and effective washing and rinsing system, becoming the perfect solution for those locations with low pressure water network and high production requirements. Built in durable stainless steel with electromechanical components and simple digital controls for a user-friendly operation.


EFFI WASH

    Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.

EFFI RINSE

    Built-in water pressure pump and air break system assuring the best sanitation result, with a linear 180°F full rinsing cycle. It also works with low incoming water pressure, fitting in installations that do not reach the minimum recommended 15-25 psi.

EFFI SILENT

    Full double skin provides extra insulation on body and door for noise reduction and thermal efficiency.

SOFT START

    Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level on location.

MULTI POWER

    Easily adapt the power level to your needs. Choose the maximum power for the highest production requirements or reduce consumption with a low power set up.

DIGITAL CONTROLS

    Simple digital control panel with digital temperature display for intuitive and user-friendly operation.


CONSTRUCTION

  • New double skin stainless steel body structure with stamped design (wash tank, rack guides, control panel..), made to resist strong usage.
  • AISI-304 Stainless steel double wash / rinsing arms and tray filters.
  • Higher clearance : 15 1/4”.
  • Rock counterbalanced door. Double spring and stainless steel hinge system tested to resist the strongest usage. Safe 3 step open system: (1) remove steam, (2) check rack, and (3) remove/ place rack.
  • IPX4 - Stronger protection against water hose cleaning and external humidity.
  • Multi-connection box: Conveniently located electrical box for easy access that improves maintenance and allows for single or three fase connection in the field and multitension.
  • Built-in detergent, pressure and drain pumps.
  • Each unit comes standard with one (1) flat rack one (1) peg rack and one (1) cutlery container.
Product Features
Thermo Stop
Thermo Stop
Thanks to Thermostop, the dishwasher won’t start rinsing until it reaches the ideal rinsing temperature, 85 °C. When enabled, and if necessary, Thermostop extends the wash cycle until the boiler reaches a rinse temperature that ensures correct sanitisation according to hygiene standards. Some models leave the factory with this mode deactivated, but it can be easily activated.
EFFI-RINSE
EFFI-RINSE
The EFFI-RINSE system guarantees a perfect, hygienic result with a complete, linear rinse cycle at 85ºC thanks to the built-in rinsing pump and the Air Break system design. It also works with low input water pressure, making it the perfect system when the mains water of the installation does not reach the minimum recommended pressure of 2 bars.
Safe Filtering
Safe Filtering
Consists in a simple 3 steps filtering system for big, medium and small size dirtiness particles; allowing to keep the wash tank water clean for a longer period of time.
Soft Start
Soft Start
It reduces the noise levels of the bar or restaurant where it is fitted and stops glasses and plates from moving inside the basket, protecting them against breakage and improving the wash cycle for all dishware.
EFFI-SILENT
EFFI-SILENT
E-vo Generation has been built with a single idea in mind: creating a single body which is full of benefits for all three ranges. Thanks to this, even our most basic range features a double-walled design. This helps soundproof the machine, creating a much more tranquil environment.
Large Opening
Large Opening
Using our special basket CB7-GN, E-VO CONCEPT, CONCEPT PLUS and ADVANCE undercounters and hood-type machines are able to wash perfectly GN 1/1 trays. A huge advantage for our customers, thanks to its 380 mm clearance for undercounters
Temperature Display
Temperature Display
Available on both our Concept Plus and Concept front-loading dishwashers. It shows the operating temperature of the machine, allowing you to quickly and visually check that the machine is operating within the suitable parameters.
