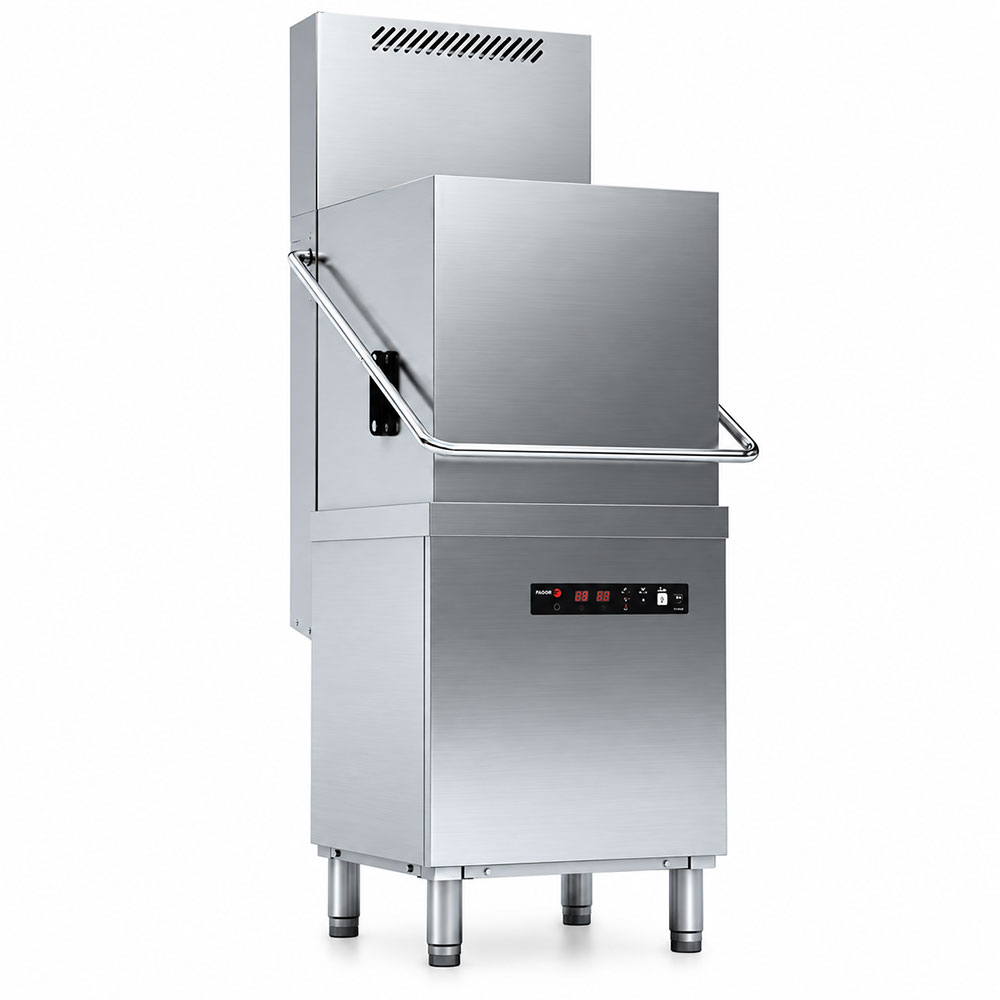

Fagor COP-174W-HRS 25" Ventless High Temp Hood-Type Dishwasher w/ Heat Recovery System- 38 Racks/Hr
Fagor COP-174W-HRS 25" Ventless High Temp Hood-Type Dishwasher w/ Heat Recovery System- 38 Racks/Hr
Bullets list
- High Temp Dishwasher
- Heat Recovery System
- 38 Racks per hour
- Ventless
- ENERGY STAR qualified
- Field convertible Phase
Fagor COP-174W-HRS 25" Ventless High Temp Hood-Type Dishwasher w/ Heat Recovery System- 38 Racks/Hr
Fagor’s Concept+ range of dishwashers offers a highly efficient and effective washing and rinsing system, becoming the perfect solution for those locations with low pressure water network and high production requirements. Built in durable stainless steel with electromechanical components and simple digital controls for a user-friendly operation.
EFFI WASH
Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.
Built-in water pressure pump and air break system assuring the best sanitation result, with a linear 180°F full rinsing cycle. It also works with low input water pressure, fitting in installations that do not reach the minimum recommended.
Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level in your facility.
Simple digital control panel for intuitive and user-friendly operation.
CONSTRUCTION
- Vent-less, Heat-Recovery System: Preheat the incoming water and condensate steam.
- Stainless steel body structure with stamped design (wash tank, rack guides, control panel), made to resist heavy usage.
- AISI-304 Stainless steel. Independent wash & rinsing arms, tray filters.
- Field adjustable straight-thru or corner operations.
- Higher clearance: 17”.
- Advance soft-lift counterbalanced system and magnetic switch for the hood.
- IPX4 - Stronger protection against water hose cleaning and external humidity.
- Multi-connection box: Conveniently located electrical box for easy access that improves maintenance and allows for single or three phase connection in the field and multi-tension.
- Built-in detergent and rinse pump
- Cannot accept any drain pump
- Manual / Gravity Drain
- Floor Drain or Standpipe required for water draining.
- Standpipe no higher than 15” from the ground
- ONLY High Temp, Low Suds Commercial Grade Detergent
Standard Features
- Each unit comes standard with one (1) flat rack, one (1) peg rack and one (1) cutlery container.
- 1 HP wash pump
- 18.0 kW total
- ETL, cETLus, CE, ENERGY STAR
Approvals
-
ETL
-
cETLus
-
CE
-
EnergyStar
Documents

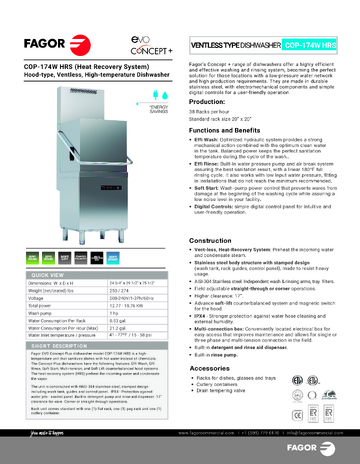

Product Specifications
Manufacturer | Fagor |
---|---|
SKU | COP-174W-HRS |
Condition | New |
Length (in.) | 24.75 |
Depth (in.) | 29.5 |
Height (in.) | 75.5 |
Horsepower | 1 HP |
Volts | 208-220 |
Hertz | 60 |
Phase | 1/3 |
Kilowatts | 18.76 |
Amps | 49 |
Approval | ETL, cETLus, CE, EnergyStar |
Product Features
-
Thermo Stop
Thanks to Thermostop, the dishwasher won’t start rinsing until it reaches the ideal rinsing temperature, 85 °C. When enabled, and if necessary, Thermostop extends the wash cycle until the boiler reaches a rinse temperature that ensures correct sanitisation according to hygiene standards. Some models leave the factory with this mode deactivated, but it can be easily activated. -
EFFI-RINSE
The EFFI-RINSE system guarantees a perfect, hygienic result with a complete, linear rinse cycle at 85ºC thanks to the built-in rinsing pump and the Air Break system design. It also works with low input water pressure, making it the perfect system when the mains water of the installation does not reach the minimum recommended pressure of 2 bars. -
Safe Filtering
Consists in a simple 3 steps filtering system for big, medium and small size dirtiness particles; allowing to keep the wash tank water clean for a longer period of time. -
Soft Start
It reduces the noise levels of the bar or restaurant where it is fitted and stops glasses and plates from moving inside the basket, protecting them against breakage and improving the wash cycle for all dishware. -
Large Opening
All of our Concept, Concept Plus and Advance hood-type dishwashers are perfectly able to wash GN-1/1 trays. Their large 440 mm opening offers a great deal of versatility. -
Insulates Noise
Our Advance range has a double-walled hood which helps soundproof the machine and create a quieter work environment. -
Temperature Display
Available on both our Concept Plus and Concept front-loading dishwashers. It shows the operating temperature of the machine, allowing you to quickly and visually check that the machine is operating within the suitable parameters.
