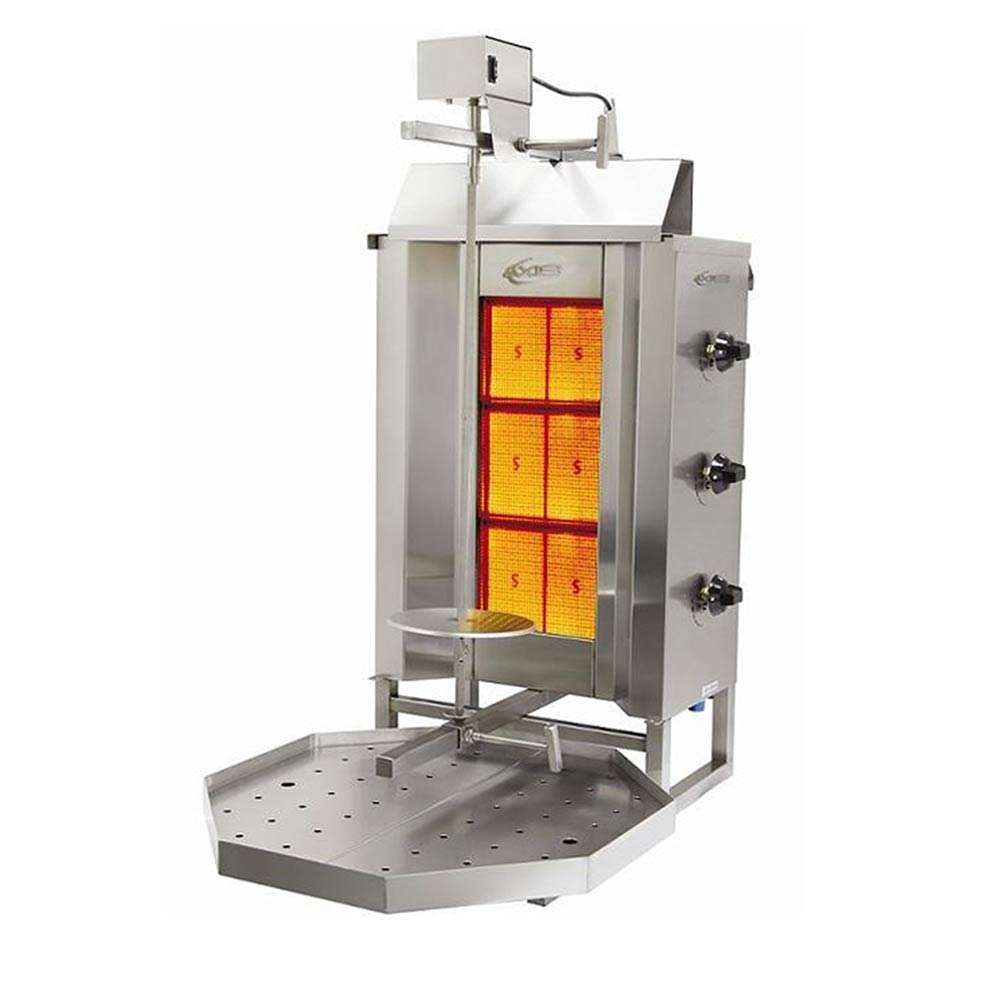

Axis AX-VB3 88 lb. Vertical Gas Gyro Broiler - 34,140 BTU
SKU: AX-VB3
Axis AX-VB3 88 lb. Vertical Gas Gyro Broiler - 34,140 BTU
AXIS: Innovation, Design, Simplicity, Performance, Quality, Efficiency, Value.
STANDARD FEATURES
- All heavy-duty stainless steel AISI 304 construction for hygiene
- Unitized base provides a strong and reliable professional appliance
- Infrared burners and can be operated individually
- Electric motor positioned at the top of the unit away from any fats
- Motor rotates both clockwise and counter-clockwise
- If the flame extinguishes, the thermo-elements will cut any gas flow
- Individual burner controls and removable drip tray are furnished
- With our unique E-Z slide dual-rail system, the operator can broil the meats closer or further from the heat source; as well angled
- Available in three or four burner configuration (AX-VB3/AX- VB4)
- 120 volt cord and plug required for motor rotation. NEMA 5-15P
- Broilers are shipped ready for natural gas installation. An LP conversion kit is included with each unit.
- ETL and NSF approved
- Warranty: One year parts and labor
Reviews
Discontinued
- 34,140 BTU
- 88 lb. meat capacity
- Adjustable temperature range
- Simple disassembly for easy cleanup
- Shipped Ready For Natural Gas Installation
- LP Conversion Kit Is Included
Product Specifications
| Length (in.) | 18.00 |
|---|---|
| Volts | 120 |
| Total BTU | 34140 |
| Condition | New |
| Hertz | 60 |
| Manufacturer | Axis |
| Depth (in.) | 22 |
| Phase | 1 |
| Capacity | 88 lb. |
| SKU | AX-VB3 |
| Height (in.) | 39 |
| Nema Plug | 5-15P |
| Spit Height (in) | 24.00 |

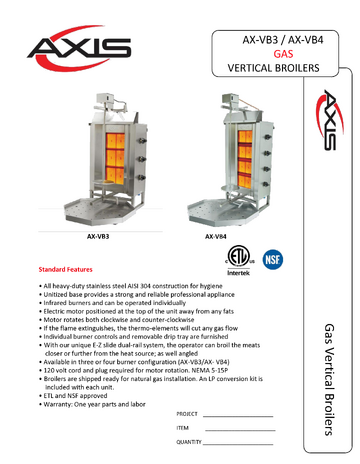

Documents
Axis Commercial Cooking Equipment
Created with the intention of establishing a pioneer movement in the time-honored food service industry, Axis Equipment Co. has launched its stellar product line, based on the simple principles of superior quality and excellent service.
