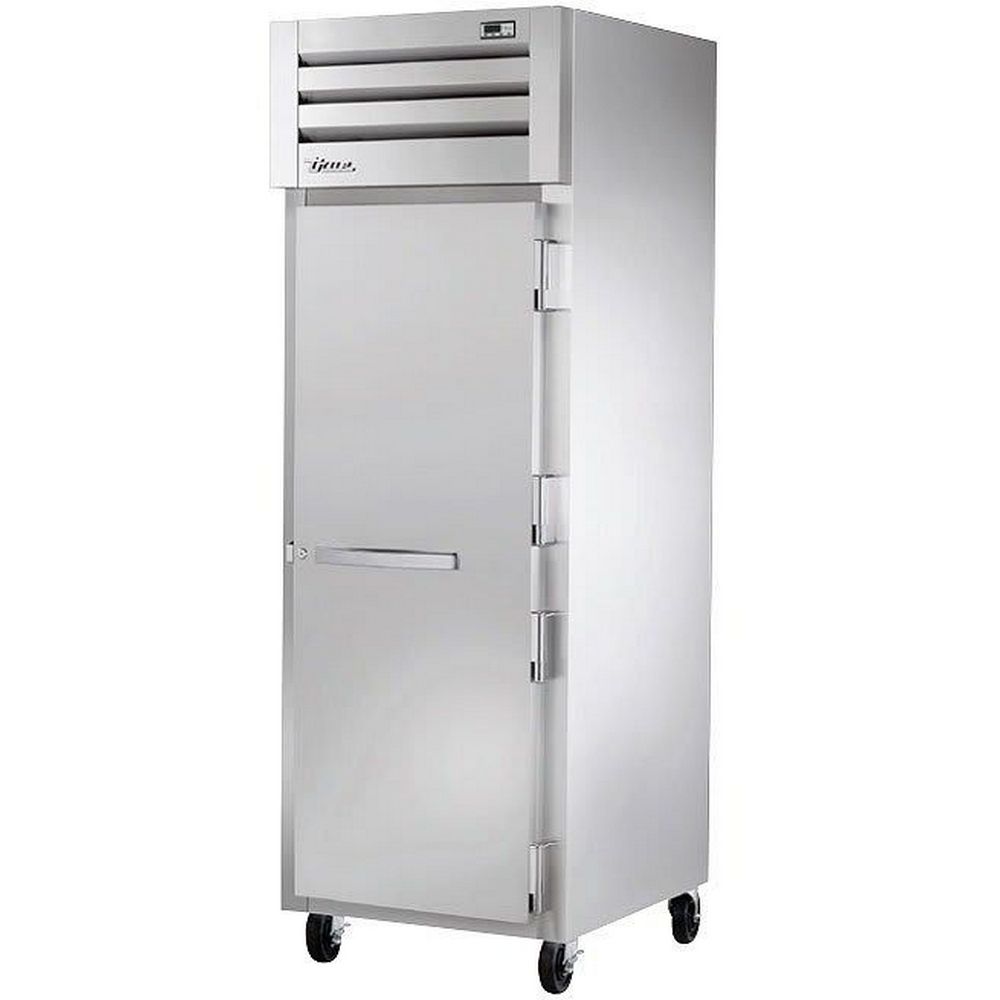

True STG1F-1S-HC 28" Spec Series Reach-In Solid Swing Door Freezer with Hydrocarbon Refrigerant - 31 Cu. Ft.
SKU
STG1F-1S-HC
True STG1F-1S-HC 28" Spec Series Reach-In Solid Swing Door Freezer with Hydrocarbon Refrigerant - 31 Cu. Ft.
Chat for info
Free Shipping
Warranty
3 Year Parts & Labor, 5 Year Compressor
Bullets list
- Stainless Steel Door & Front
- Matching Aluminum Sides
- Aluminum Int. Side Walls & Back
- Stainless Steel Floor & Ceiling
- 3 Heavy-Duty Chrome-Plated Wire Shelves/Section
True STG1F-1S-HC 28" Spec Series Reach-In Solid Swing Door Freezer with Hydrocarbon Refrigerant - 31 Cu. Ft.
Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
Standard Features
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
- Automatic defrost system timeinitiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
- Automatic evaporator fan motor delay during defrost cycle.
- Insulation - entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- 5" (127 mm) diameter plate castors - locks provided on front set.
- Lifetime guaranteed heavy duty all metal working door handle.
- Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- LED interior lighting, safety shielded.
- Exterior digital temperature display, available with either °F or °C .
- Evaporator epoxy coated to eliminate the potential of corrosion
- Curb mounting ready.
- NSF/ANSI Standard 7 compliant for open food product.
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
REFRIGERATION SYSTEM
CABINET CONSTRUCTION
DOOR
LIGHTING
MODEL FEATURES
ELECTRICAL
Approvals
-
UL
-
NSF
Documents

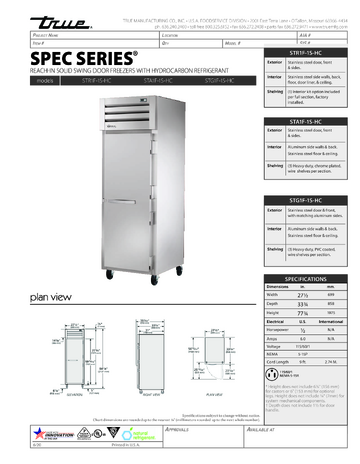

Product Specifications
Manufacturer | True MFG |
---|---|
SKU | STG1F-1S-HC |
Condition | New |
Length (in.) | 27.50 |
Depth (in.) | 33.75 |
Height (in.) | 84.3 |
Volts | 115 |
Hertz | 60 |
Approval | UL, NSF |
Cubic Feet | 31 |
Door Material Type | Solid Door(s) |
Compressor Location | Top Mount |
Pass Thru Door | No |
Roll-In | No |
Number of Sections | 1 Section |
