Mr Winter 8' x 10' Commercial Walk-in Cooler Box

SKU
8X10C

Mr Winter 8' x 10' Commercial Walk-in Cooler Box

$5,211.00
Free Shipping
JSB Zelle Bank Transfer Amex Visa Mastercard Discover
Write Your Own Question
Only registered users can write questions. Please Sign in or create an account
Product Reviews from Verified Customers
Write Your Own Review
Add review

Bullets list

  • Commercial Walk-in Cooler
  • 4" Thermal resistant panels
  • Self-closing door hinge
  • Remote Refrigeration Available
  • Custom Sizes Available

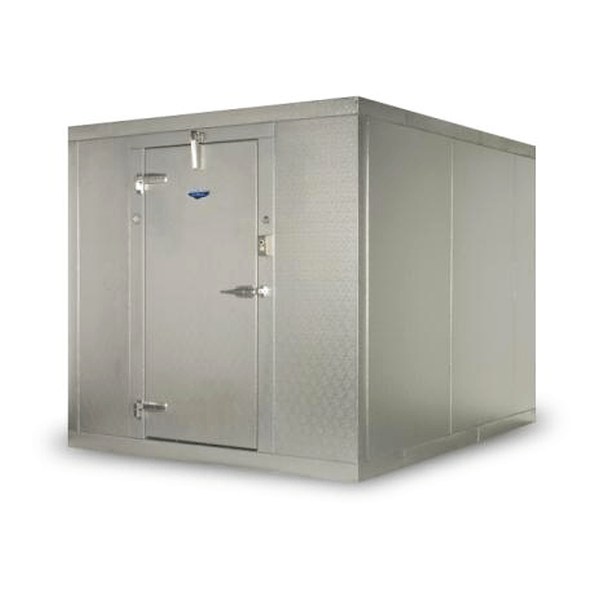

Mr Winter 8' x 10' Commercial Walk-in Cooler Box

Walk Ins are custom built to order. DOOR LOCATION & HINGE POSITION determined by size. Photo is for reference only. Custom Sizes Available. All buyers will sign off on technical drawing before unit enters production.

**Mr. Winter Walk-in Coolers and Freezers ships ONLY TO THE EAST OF THE MISSISSIPPI/EAST COAST for sales inquiries to the WEST of the Mississippi use the Norlake or Amerikooler brand.

Mr. Winter is a Walk-In Cooler and Freezer manufacturer out of Florida. All Walk-In units are USA made and feature USA built Tecumseh compressors.

REMOTE REFRIGERATION (Optional)
Optional Remote Condensing Units / Compressors are USA built Tecumseh Brand with 1 Manufacturer Year Warranty.
Indoor or Outdoor Condesing Units available

FLOORS (Optional)
Heavy gauge smooth aluminum. Optional Stainless Steel & Marine Plywood Reinforcement.

FINISH
Walls and ceilings: Standard 26 Gauge Stucco Embossed Galvalume Finish with a weather Protective aluminum and zinc alloy, 26 Gauge Stucco Embossed White Galvalume or 26 Gauge Stainless Steel 2B Finish with PVC.

INSULATION
4" TRP for walk-in coolers and freezers. EISA of 2007 & US D.O.E Certified Compliant.

COOLERS
4" Thermal Resistant Panel*
ASTM Test C-518
Flame spread and smoke development 5/190 ASTM Test E84

FREEZERS
4" Thermal Resistant Panel*
ASTM Test C-518
Flame spread and smoke development 15/250 ASTM Test E84

INDOOR/OUTDOOR
For outdoor condesing unit installs, please choose Outdoor condensing unit
For outdoor Box installs, please add Mr Winter Rain Roof Accessory

JOINT
Panels have factory installed, NSF approved gasket, which insures a proper seal and better appearance. Standard gaskets are 1/8" closed cell neoprene.

DOORS
Standard door size is 34" X 76". Includes: Self closing hinges, automatic door closer, keyed entry latch with interior safety release, vapor proof light fixture, pilot light switch and dial thermometer. Freezer doors include anti condensate heater wire and pressure relief vent.

CONSTRUCTION
Panel facing shall be laminated to rigid insulation with urethane based adhesive under pressure to insure a strong and permanent bond. Panels are of 100% insulation (non wood construction) and all panel edges are tongue and groove. Panel connectors are factory installed rotary cam type speed locks. Floor panels are designed to sustain a load of 500 lbs. per square foot. Where floor panels are not required, 1" x 1" aluminum angle or NSF plastic screed will be furnished to insure a proper seal. Optional reinforcements can be added for heavier loads.

INSTALLATION
To help reduce installation time, all panels are marked to correspond with the installation drawing supplied by the factory. Also provided, one allen wrench along with miscellaneous installation materials.

*Loose Parts Included: Expansion Valve, Sight Glass and Drier, Solenoid Valve with Coil, Thermostat, Timer, Drain Line Heater, Crank Case Heater, Fan Cycle Control

Approvals

  • NSF

  • EISA

Documents

Product Specifications

Specification
Manufacturer Mr. Winter
SKU 8X10C
Condition New
Length (in.) 96.00
Depth (in.) 120
Height (in.) 90
Approval NSF, EISA
Quick Quote Get a PDF quote emailed instantly
SKU
8X10C

Mr Winter 8' x 10' Commercial Walk-in Cooler Box

$5,211.00
Free Shipping
JSB Zelle Bank Transfer Amex Visa Mastercard Discover

Bullets list

  • Commercial Walk-in Cooler
  • 4" Thermal resistant panels
  • Self-closing door hinge
  • Remote Refrigeration Available
  • Custom Sizes Available
Quick Quote Get a PDF quote emailed instantly

Product Specifications

Specification
Manufacturer Mr. Winter
SKU 8X10C
Condition New
Length (in.) 96.00
Depth (in.) 120
Height (in.) 90
Approval NSF, EISA

Documents

Approvals

  • NSF

  • EISA

Mr. Winter is a Walk-In Cooler and Freezer manufacturer out of Florida. All Walk-In units are US made and feature US built Tecumseh compressors.
