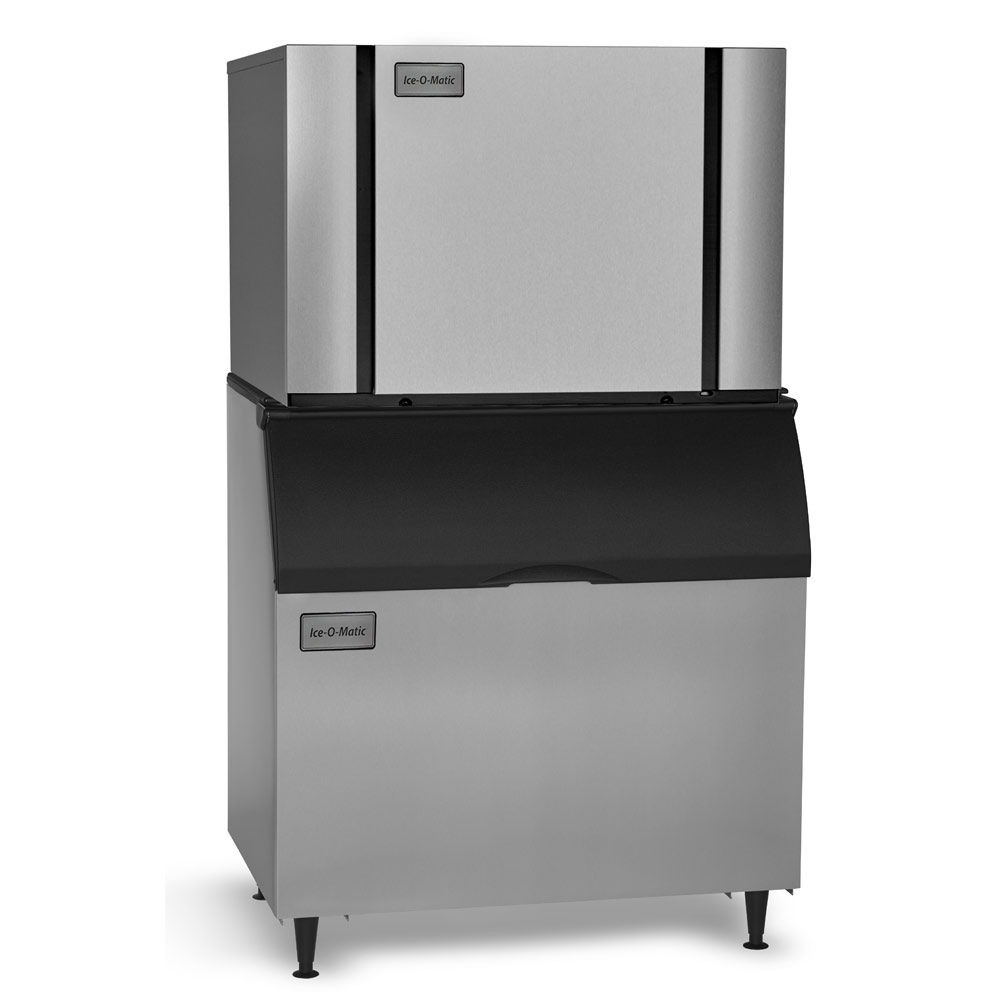

Ice-O-Matic CIM2046FA-B110PS 1810 lb. Ice Machine with 854 lb. Storage Bin Air Cooled Full Cube 48" Modular Self-Contained, 208-230v/1ph
This 48" commercial ice machine makes 1810 lb. of ice cube per day. Made in the USA with a quality stainless steel interior and exterior, this 208-230 volt Ice-O-Matic ice maker uses a 3-wire connection, which requires professional installation. Ideal commercial equipment for any restaurant, bakery, or coffee shop that needs high volume ice production for their business. Ice-O-Matic full cube ice makers make 7/8" full cube sized ice, perfect for restaurants or bars serving drinks and cocktails. If your business is blending ice or serving fountain soda or ice coffee consider a half cube machine. Air cooled ice machines use fans to cool the compressor, which works well for most businesses. Air cooled machines are easier to setup and use less water. However if you are installing your ice maker into a a hot space consider a water cooled machine. Modular ice machines like the CIM2046FA use a separate ice machine head and ice bin. So a 48" modular ice maker must sit on a 48" ice machine bin. They can be purchased individually or together, depending on the needs of your business. Ice-O-Matic is an American manufacturer of high quality manufacturer of commercial modular and undercounter ice makers.
ICE MACHINE STANDARD FEATURES- Elevation Series Modular Cube Ice Maker
- Air-cooled
- Self-contained condenser
- Dual exhaust top/side air discharge
- 48" W
- Approximately 1810 lb. production/24 hours at 70 degrees/50 degrees Fahrenheit (1470 lb. at 90 degrees/70 degrees Fahrenheit)
- Full-size cubes
- PURE ICE built in antimicrobial protection
- LED status display
- One touch sanitize/descaling controls
- Dishwasher safe food zone components
- cULus, NSF, CE
STORAGE BIN STANDARD FEATURES
- Ice Bin
- 854 lb. storage capacity
- 31" deep for use where space is at a premium
- Top-hinged
- Slope front door
- For top-mounted ice maker
- Polyethylene interior
- Stainless exterior finish
- 6 inch legs
- NSF
-
CE -
cULus -
NSF
- 48" module ice maker machine
- 854 lb. capacity storage bin
- Air-cooled condenser
- Full-size ice cube
Product Specifications
| Length (in.) | 48.25 |
|---|---|
| 24 Hour Ice Yield | 1810 lb. |
| Ice Volume Yield | > 1000 lbs/day |
| Condition | New |
| Volts | 208-230 |
| Bin Storage Capacity | 854 lb. |
| Manufacturer | Ice-O-Matic |
| Depth (in.) | 31 |
| Hertz | 60 |
| Condenser Type | Air Cooled |
| Cooling System Type | Air Cooled |
| SKU | CIM2046FA-B110PS |
| Phase | 1 |
| Height (in.) | 76 |
| Kilowatts | 4.62 |
| Amps | 25.6 |
| Hardwired | Yes |
| Ice Type | Full Cube |
| Installation Type | Freestanding |
| Refrigerant | R404a |
When you need ice, reach for an Ice-O-Matic machine, they specialize, to the exclusion of everything else, in making ice, as you would expect. Having a machine that’s only job is to produce ice in abundance is the most efficient solution. Drinks in bars, restaurants, movie theaters, bowling alleys, and fast food vendors are produced without delay for thirsty customers.
