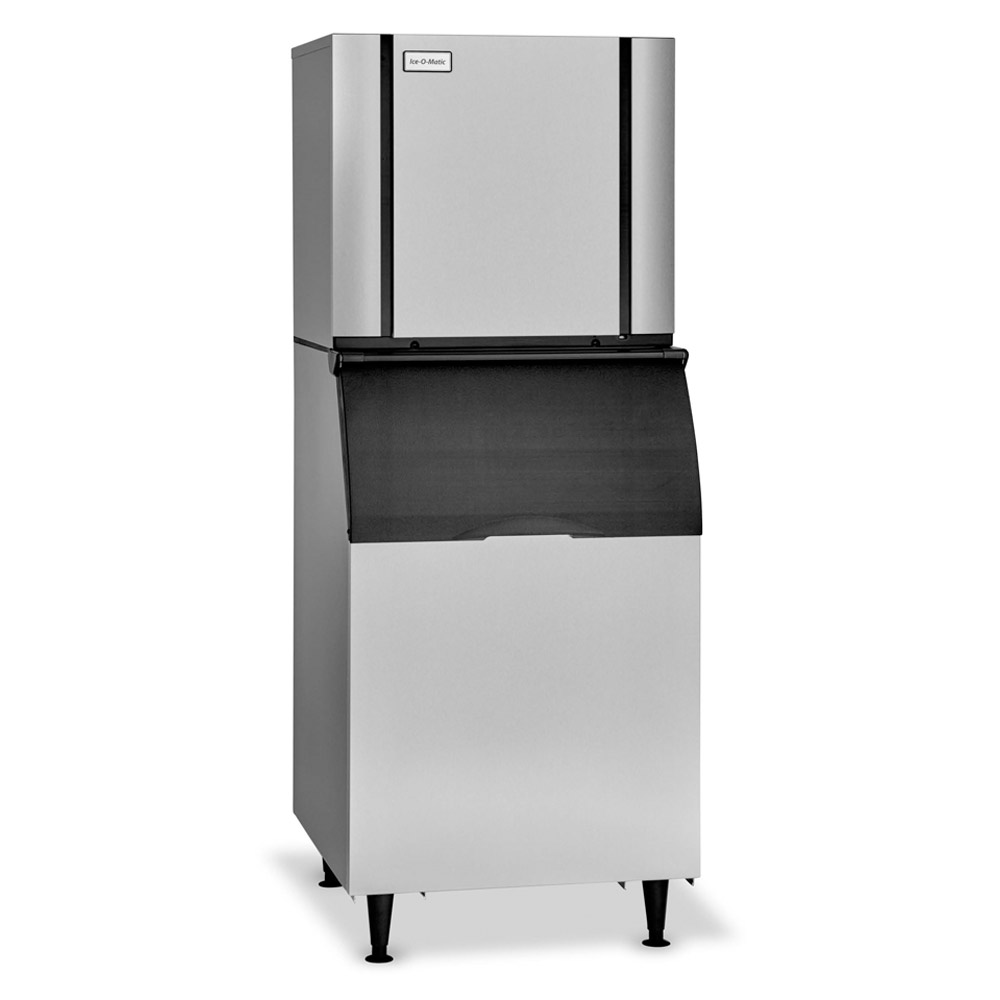

Ice-O-Matic CIM1137HR-B55PS 30" 973 lb. Half Cube Remote Cooled Modular Ice Machine w/ 510 lb. Storage Bin
Ice-O-Matic CIM1137HR-B55PS 30" 973 lb. Half Cube Remote Cooled Modular Ice Machine w/ 510 lb. Storage Bin
Bullets list
- 510 lb. Storage Bin
- Half Cube / Remote Cooled
- Up to 973 lb. of Ice / Day
- Antimicrobial Protection
- Effortless Wipe Down & Long Lasting Sanitation
- Unique Dual Exhaust
- Universal Smart Harness Control Board
Ice-O-Matic CIM1137HR-B55PS 30" 973 lb. Half Cube Remote Cooled Modular Ice Machine w/ 510 lb. Storage Bin
ELEVATION SERIES - THE MOST ESSENTIAL INGREDIENT - The new and groundbreaking Elevation Series from Ice-O-Matic is designed to simplify life. Our cube ice machines are easy to clean, easy to service, simple to operate, and environmentally responsible without sacrificing productivity. The Elevation Series provides clean, dependable ice from an astonishingly user-friendly and energy-efficient machine designed to work as hard as you.
The CIM1136/1135/1137 modular cube ice machine offers a safe and user-friendly machine packed with innovative features to simplify life.
ONE TOUCH CLEANING
One touch to sanitize, one touch to de-lime. LEDs signal when cleaning is required.
Sanitation has never been easier. Unique plastic food zone parts snap in and out and are dishwasher safe.
Groundbreaking technology allows hot-air discharge from the side or the top of every unit.
No bottle brushes required. Easily removed and disassembled for cleaning. Dishwasher safe.
STANDARD FEATURES
- 60 Hz and 50 Hz models
- Air, Remote or Water Cooled units available
- Exclusive Dual Exhaust on Air Cooled units
- 30.25" (768 mm) wide space-saving design
- Full or Half cube
- Up to 1035 lbs. (469 kg.) production in a 24 hour period
- Warranty - 3 years parts/labor; 5 years parts evaporator/compressor; 7 years evaporator with water filter
- 30.25" (768 mm) wide x 24.25" (616 mm) deep x 26.9" (689 mm) height
STORAGE BIN STANDARD FEATURES
- Ice Bin
- 510 lb. storage capacity
- 31" deep for use where space is at a premium
- Top-hinged
- Slope front door
- For top-mounted ice maker
- Polyethylene interior
- Stainless exterior finish
- 6 inch legs
- NSF
Approvals
-
cULus
-
NSF
-
CE
Documents
Product Specifications
Manufacturer | Ice-O-Matic |
---|---|
SKU | CIM1137HR-B55PS |
Condition | New |
Length (in.) | 30.25 |
Depth (in.) | 31 |
Height (in.) | 76.9 |
Volts | 208-230 |
Hertz | 60 |
Phase | 3 |
Kilowatts | 4.9 |
Amps | 9.5 |
Hardwired | Yes |
24 Hour Ice Yield | 973 lb. |
Approval | cULus, NSF, CE |
Bin Storage Capacity | 510 lb. |
Condenser Type | Air Cooled |
Ice Type | Half Cube |
Installation Type | Freestanding |
Refrigerant | R404a |
Ice Volume Yield | 301-1000 lbs/day |
Cooling System Type | Air Cooled |
