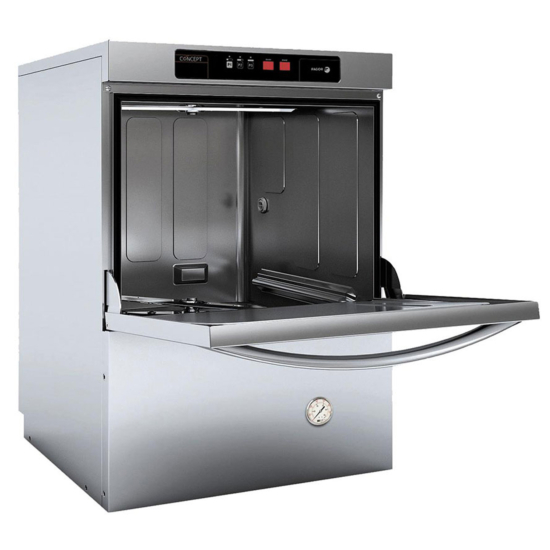

Fagor CO-500W 24" High Temperature Commercial Undercounter Dishwasher, Glasswasher & Sanitizer - 30 Racks/Hr
Fagor CO-500W 24" High Temperature Commercial Undercounter Dishwasher, Glasswasher & Sanitizer - 30 Racks/Hr
Bullets list
- Dishwasher, Glasswasher & Sanitizer
- Low energy & water consumption
- Digital controls with temperature display
- ENERGY STAR qualified glasswasher
- Durable high-performance
- 20-22 PSI Water Pressure Required for Optimal Performance
Fagor CO-500W 24" High Temperature Commercial Undercounter Dishwasher, Glasswasher & Sanitizer - 30 Racks/Hr
Fagor’s Concept range of dishwashers offers a highly efficient and effective washing and rinsing system, becoming the perfect solution for those locations with low pressure water network and high production requirements. Built in durable stainless steel with electromechanical components and simple digital controls for a user-friendly operation.
EFFI WASH
Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.
Full double skin provides extra insulation on body and door for noise reduction and thermal efficiency.
Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level.
Working in series with the booster heater, this relay ensures the time will not advance to the rinse cycle until the sanitation temperature of the rinse water (180 °F) is met.
Simple control panel with temperature display, IPX-4 proof.
Easily configure your dishwasher as a glass-washer or sanitizer whenever you need it.
CONSTRUCTION
- New double skin stainless steel body structure with stamped design (wash tank, rack guides, control panel..), made to resist strong usage.
- AISI-304 Stainless steel double wash / rinsing arms and tray filters.
- Higher clearance : 15 1/4”.
- Rock counterbalanced door. Double spring and stainless steel hinge system tested to resist the strongest usage. Safe 3 step open system: (1) remove steam, (2) check rack, and (3) remove/ place rack.
- IPX4 - Stronger protection against water hose cleaning and external humidity.
- Built-in drain pumps, detergent, and rinse aid dispenser.
- Built-in pressure gauge and anti-return valve.
- Manual / Gravity Drain
- Floor Drain or Standpipe required for water draining.
- Standpipe no higher than 15” from the ground
- ONLY High Temp, Low Suds Commercial Grade Detergent
Standard Features
- Each unit includes one (1) flat rack, one (1) peg rack, and one (1) cutlery container.
- 3/4 HP motor
- 3.5 kW total
- ETL
- cETLus
- CE
- ENERGY STAR
Approvals
-
ETL
-
cETLus
-
CE
-
EnergyStar
Documents

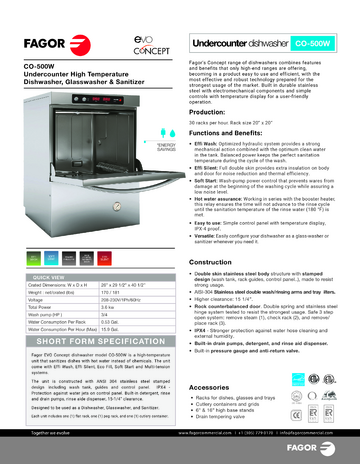

Product Specifications
Manufacturer | Fagor |
---|---|
SKU | CO-500W |
Condition | New |
Length (in.) | 23.60 |
Depth (in.) | 23.6 |
Height (in.) | 32.75 |
Horsepower | 3/4 HP |
Volts | 208/240 |
Hertz | 60 |
Phase | 1 |
Nema Plug | 6-20P |
Capacity | 30 Racks/Hr |
Exterior Material | Stainless Steel |
Approval | ETL, cETLus, CE, EnergyStar |
Product Features
-
Thermo Stop
Thanks to Thermostop, the dishwasher won’t start rinsing until it reaches the ideal rinsing temperature, 85 °C. When enabled, and if necessary, Thermostop extends the wash cycle until the boiler reaches a rinse temperature that ensures correct sanitisation according to hygiene standards. Some models leave the factory with this mode deactivated, but it can be easily activated. -
EFFI-RINSE
The EFFI-RINSE system guarantees a perfect, hygienic result with a complete, linear rinse cycle at 85ºC thanks to the built-in rinsing pump and the Air Break system design. It also works with low input water pressure, making it the perfect system when the mains water of the installation does not reach the minimum recommended pressure of 2 bars. -
Safe Filtering
Consists in a simple 3 steps filtering system for big, medium and small size dirtiness particles; allowing to keep the wash tank water clean for a longer period of time. -
Soft Start
It reduces the noise levels of the bar or restaurant where it is fitted and stops glasses and plates from moving inside the basket, protecting them against breakage and improving the wash cycle for all dishware. -
EFFI-SILENT
E-vo Generation has been built with a single idea in mind: creating a single body which is full of benefits for all three ranges. Thanks to this, even our most basic range features a double-walled design. This helps soundproof the machine, creating a much more tranquil environment. -
Large Opening
Using our special basket CB7-GN, E-VO CONCEPT, CONCEPT PLUS and ADVANCE undercounters and hood-type machines are able to wash perfectly GN 1/1 trays. A huge advantage for our customers, thanks to its 380 mm clearance for undercounters -
Temperature Display
Available on both our Concept Plus and Concept front-loading dishwashers. It shows the operating temperature of the machine, allowing you to quickly and visually check that the machine is operating within the suitable parameters.
