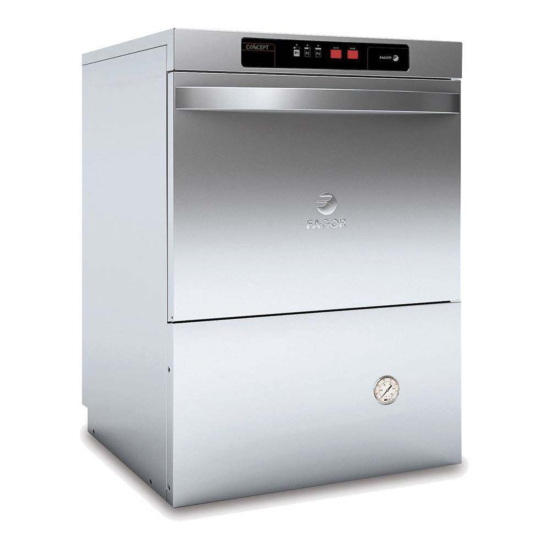

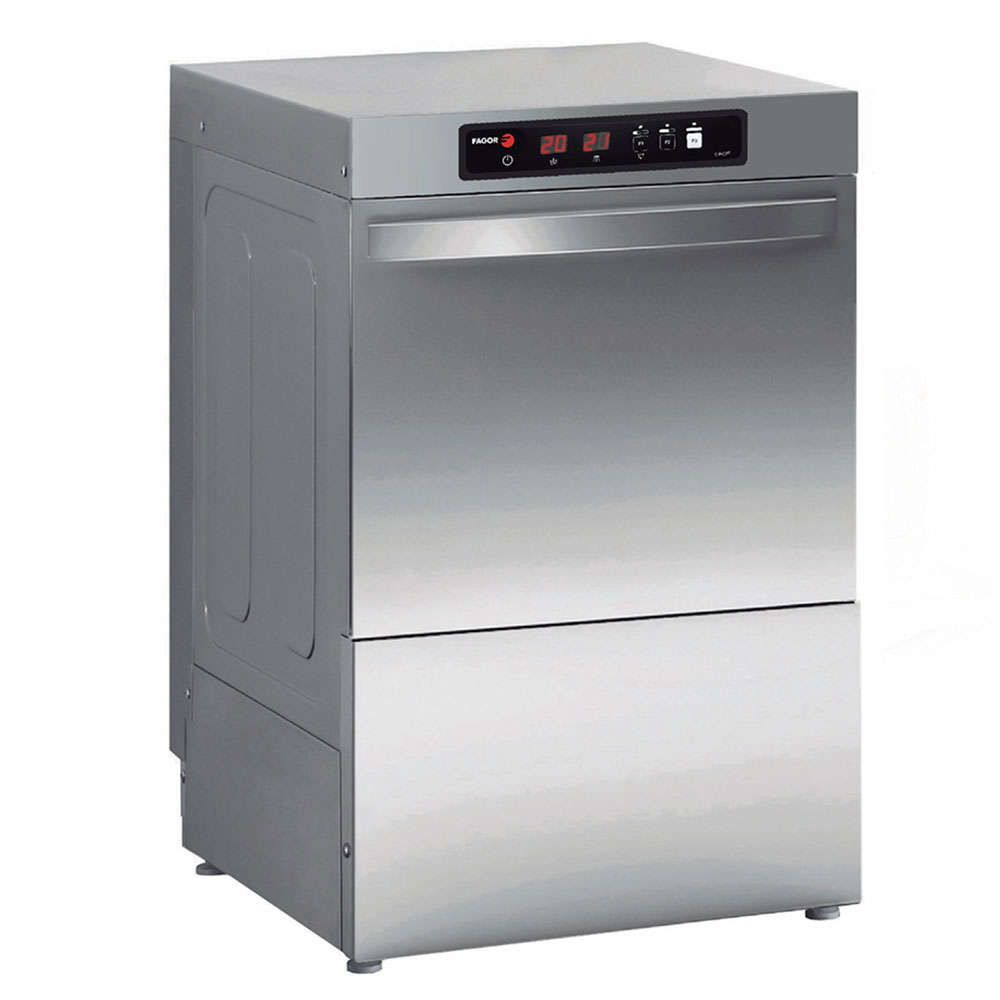

Fagor CO-402W 19" High Temp Undercounter Glasswasher - 22 Racks/Hr
1
Review
SKU: CO-402W
Fagor CO-402W 19" High Temp Undercounter Glasswasher - 22 Racks/Hr
Fagor’s Concept range of dishwashers combines features and benefits that only high-end ranges are offering, establishing a product easy to use and efficient, with the most effective and robust technology prepared for the strongest usage of the market. Built with durable stainless steel, electromechanical components and simple digital controls with temperature display for a user-friendly operation.
Effi Wash: Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.
Soft Start: Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level in your facility.
Digital Controls: Simple digital control panel with temperature display for intuitive and user-friendly operation, IPX-4 proof.
Standard Features
- EVO CONCEPT (19073544) Glasswasher
- Undercounter
- IPX4 electronic controls
- High temperature with built-in 70 deg. rise booster
- 3 wash cycles (90-120-180)
- Gallons per cycle: 053 gals
- Rinse pressure: 25psi
- (22) 16" x 16" racks/hour capacity
- Fully enclosed cabinet
- Type 304 stainless steel construction
- Electric tank heat
- Soft start
- Auto-fill
- Built-in drain pump & pressure gauge
- Detergent & rinse aid dispenser
- Adjustable legs
- Includes (2) flat 16"x16" racks, (1) cutlery container & (1) supplement for dishes
- 1/3 HP motor
- 3.2 kW total
- ETL|cETLus|CE|ENERGY STAR
Construction
- Heavy duty stainless steel construction front, top and sides.
- Double skin door to reduce noice during operations.
- AISI-304 Stainless.
- IPX4 - Stronger protection against water hose cleaning and external humidity.
- Built-in drain pump, detergent and rinse aid dispenser.
- Built-in pressure gauge.
Optional Accessories
- 12025069 - All Purpose Rack, for 16" x 16" rack

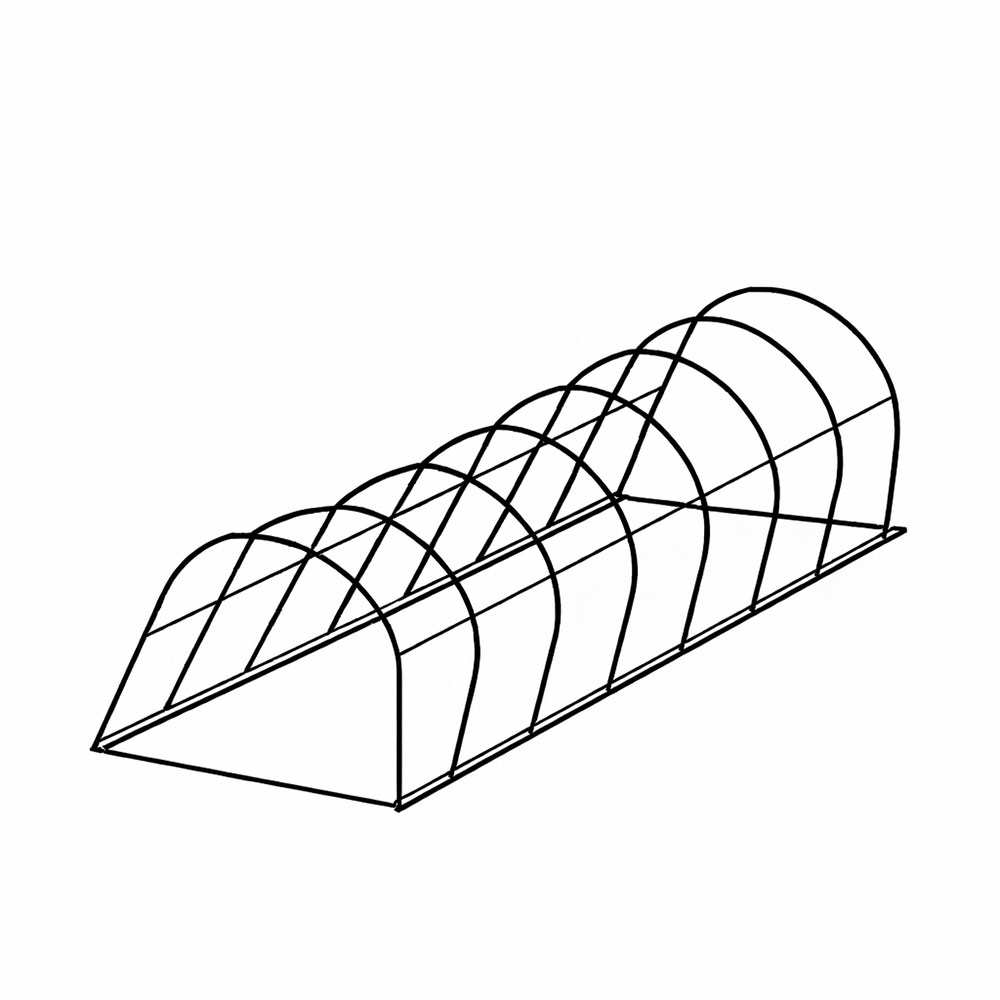

- 12025030 - Plate rack supplement to 16" x 16" rack

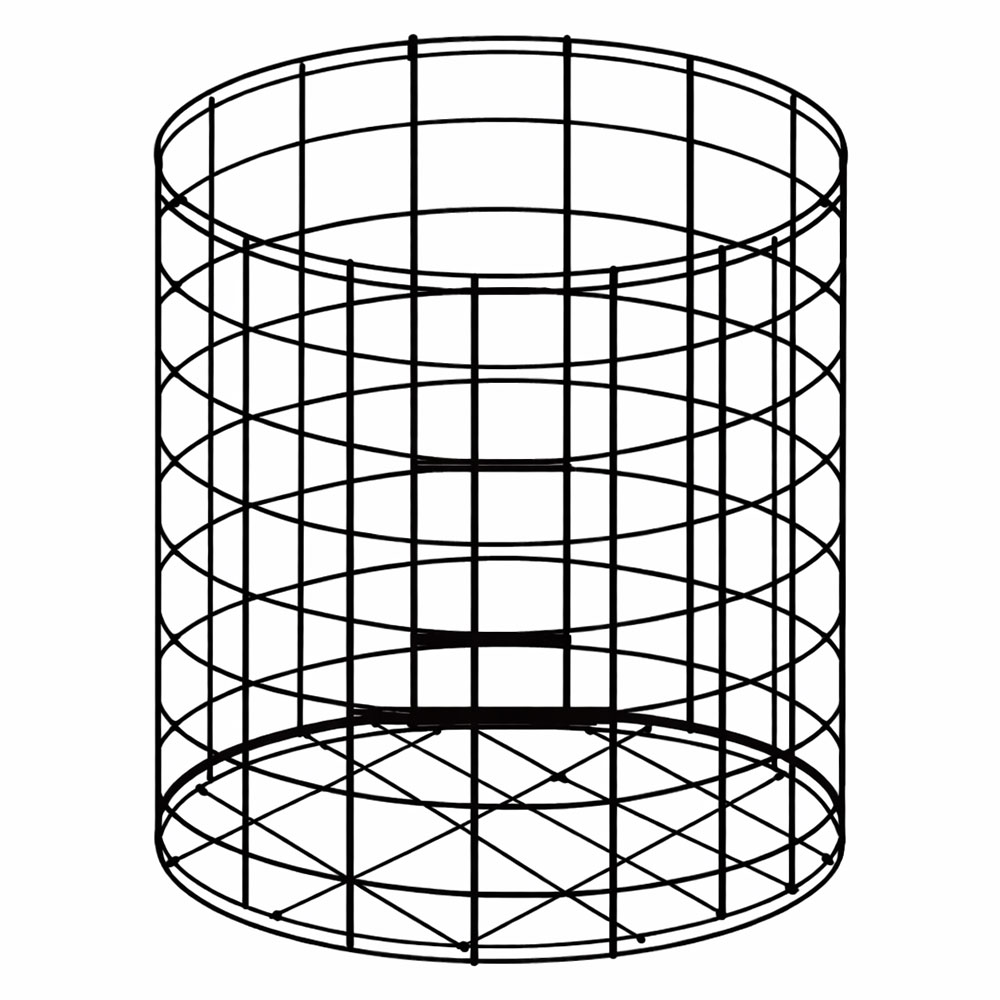

- 12025242 - Cutlery container for 16" x 16" rack
- 19079858 - 6" high Base stand. (CO-402W)
- EVPL-47 - Stand for undercounter glasswasher, 16"H
-
cETLus -
ENERGY STAR -
ETL-Sanitation
Product Features
-
EFFI-RINSE
The EFFI-RINSE system guarantees a perfect, hygienic result with a complete, linear rinse cycle at 85ºC thanks to the built-in rinsing pump and the Air Break system design. It also works with low input water pressure, making it the perfect system when the mains water of the installation does not reach the minimum recommended pressure of 2 bars. -
EFFI-SILENT
E-vo Generation has been built with a single idea in mind: creating a single body which is full of benefits for all three ranges. Thanks to this, even our most basic range features a double-walled design. This helps soundproof the machine, creating a much more tranquil environment. -
Large Opening
Using our special basket CB7-GN, E-VO CONCEPT, CONCEPT PLUS and ADVANCE undercounters and hood-type machines are able to wash perfectly GN 1/1 trays. A huge advantage for our customers, thanks to its 380 mm clearance for undercounters -
Safe Filtering
Consists in a simple 3 steps filtering system for big, medium and small size dirtiness particles; allowing to keep the wash tank water clean for a longer period of time. -
Soft Start
It reduces the noise levels of the bar or restaurant where it is fitted and stops glasses and plates from moving inside the basket, protecting them against breakage and improving the wash cycle for all dishware. -
Temperature Display
Available on both our Concept Plus and Concept front-loading dishwashers. It shows the operating temperature of the machine, allowing you to quickly and visually check that the machine is operating within the suitable parameters. -
Thermo Stop
Thanks to Thermostop, the dishwasher won’t start rinsing until it reaches the ideal rinsing temperature, 85 °C. When enabled, and if necessary, Thermostop extends the wash cycle until the boiler reaches a rinse temperature that ensures correct sanitisation according to hygiene standards. Some models leave the factory with this mode deactivated, but it can be easily activated.
Reviews
J
John B.
5
New York
April 3, 2020
No more chemicals
I got this unit because I was tired of buying sanitation chemicals and I needed a high temp washer. I had it setup and its working great. I will say that at first I thought it wasn't working correctly because the water wasn't hot enough. Turns out that the water going into the washer has to be 120 degrees, and the built in booster brings the temperature up to sanitation levels.
In Stock Now
In Stock Now
Estimated to Ship in 1-3 Days
- (2) Flat 16"x16" Racks Included
- Hold 1 Rack Total
- (22) 16" X 16" Racks/Hour Capacity
- 3 Wash Cycles (90-120-180)
- Gallons Per Cycle: 053 Gals
- Type 304 Stainless Steel Construction
- Adjustable Legs
Product Specifications
| Length (in.) | 18.50 |
|---|---|
| Horsepower | 1/3 HP |
| Condition | New |
| Volts | 220 |
| Manufacturer | Fagor |
| Depth (in.) | 20.63 |
| Hertz | 60 |
| SKU | CO-402W |
| Phase | 1 |
| Height (in.) | 29.13 |
| Kilowatts | 3.2 |
| Amps | 14 |
| Nema Plug | 6-20P |

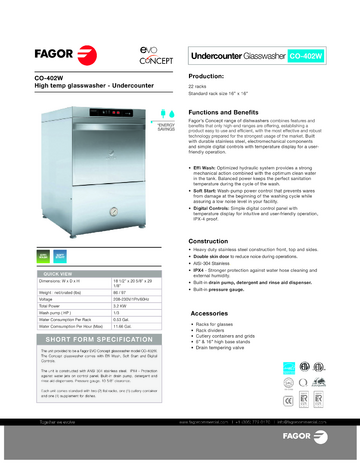

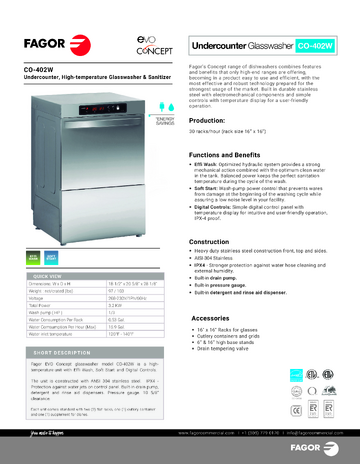

Documents
Fagor Quality Commercial Dishwashers
Fagor is one of the few brands at international level to manufacture such a broad range of products like ovens, cooking equipment, dishwashers, laundry equipment, industrial cold refrigeration and buffets or stainless steel elements made to measure.
1 Year Manufacturer Warranty
For Commercial Use Only
