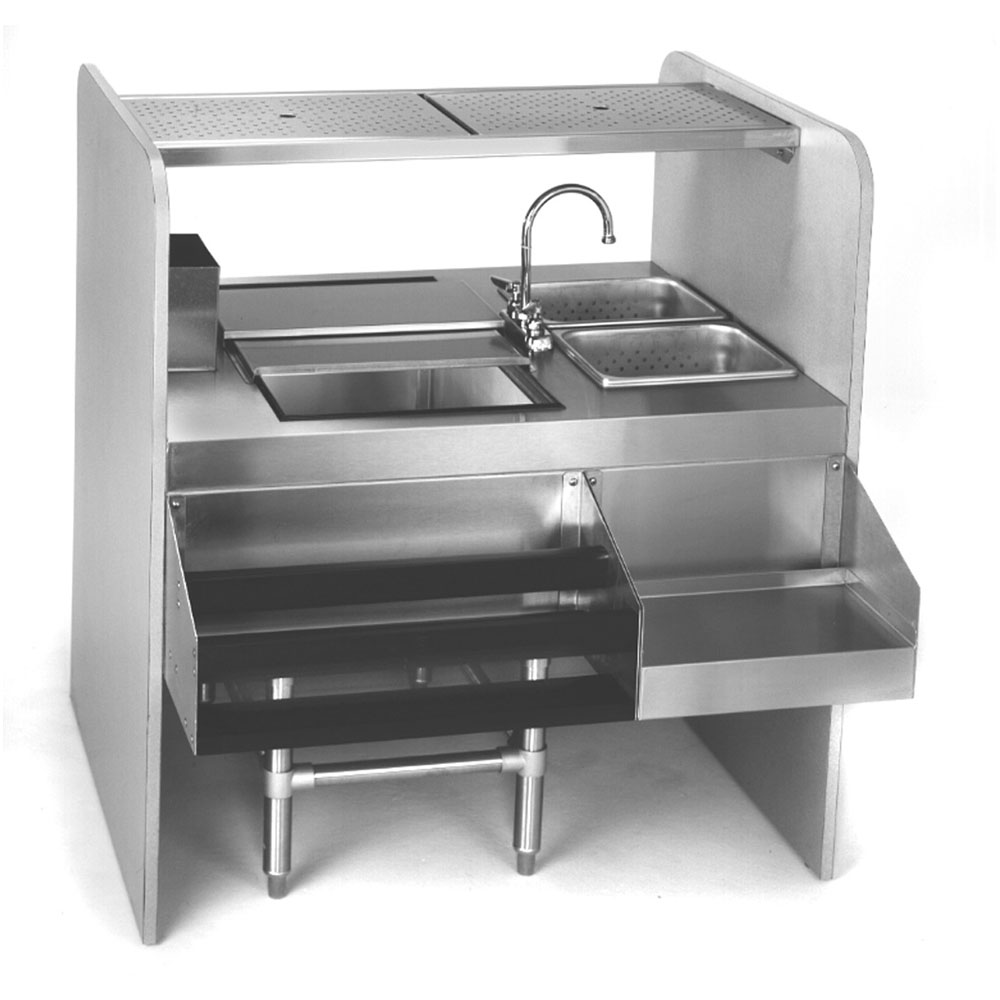

Eagle Group CS42-32R 42" Spec-Bar Cocktail Station with Right Side Ice Bin & Left Side Sink

Heavy gauge type 304 stainless steel body, legs, leg channels and cross rails with plastic laminate-covered wooden end panels (color to be determined). Two stainless steel deep-drawn sinks with stainless steel perforated lift out baskets, T&S gooseneck faucet, stainless steel blender shelf, stainless steel double speed rail with ABS for sound deadening, foamed-in-place stainless steel ice chest with sealed-in 8-circuit post mix cold plate, 4" x 8" x 61 ⁄2"-high tubing chase. Stainless steel overshelf with removable stainless steel perforated inserts.

• Overshelf with removable perforated inserts, tubing chase, work surface, blender shelf, double speed rail steps, bowls and ice bins are 20 gauge stainless steel.
• Leg channels and legs are 16 gauge stainless steel.
• 14 gauge stainless steel blender shelf ends and double speed rails.
• Front and end panels are laminated wood.
• T&S faucet is on 4" (102mm) center, accepts 3 ⁄8" (10mm) sink leads, hot and cold water connections required.
• Ice bin is 16" x 261 ⁄2" x 101 ⁄2" (406 x 673 x 267mm) deep.
• Eight-circuit cold plate has 1 ⁄2" (13mm) NPT nipple.
• Sink bowl dimensions are 9 ¼” x 11 ½” x 6" (235 x 292 x 152mm) deep.
• Sink drain is 1 ½” (38mm) I.P.S. with nut, washer, and tailpiece.
• Tubing chase is 4" x 8" x 61 ⁄2" high (102 x 203 x 165mm).
• Overshelf with removable perforated inserts included.
• Shelf heights are as follows: Tray shelf is 44” (1118mm) high, optional single overshelf is 69" (1753mm), and optional double overshelves are 63" (1600mm) and 72" (1829mm) high.
• Rotation of station depends on ice bin location. Ice bin can be at bartender’s left (clockwise) or right (counter-clockwise) —specify when ordering.
• Suggestions: Open floor drain under sink, 120-volt 20-amp, four-plex electrical outlet below ice bin.
