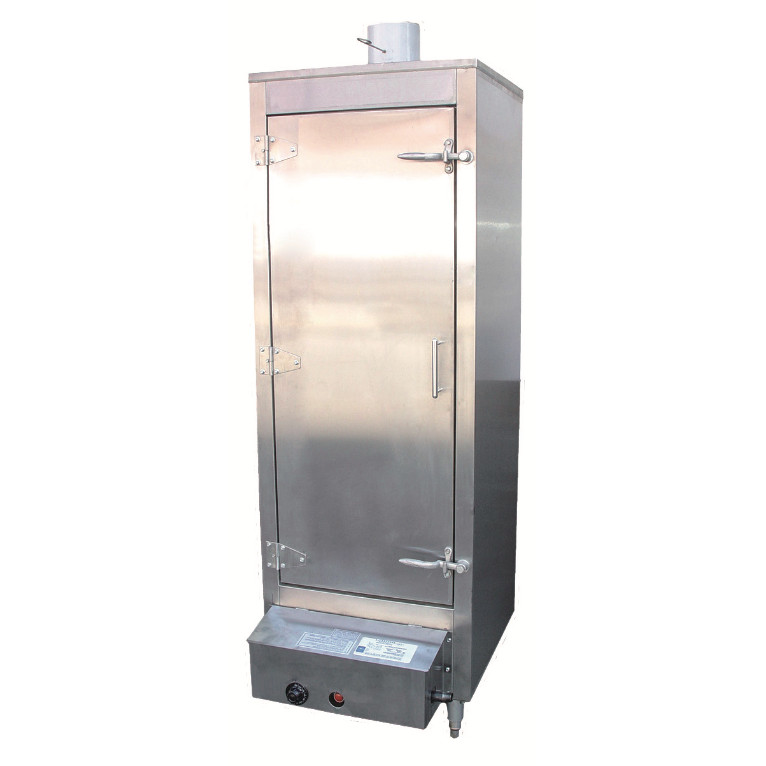

CWSH3036-S 30"D x 36"L 5 Burner Stainless Steel Interior Smokehouse Oven
$3,369.00
Estimated to Ship in 4-7 Business Days
Manufacturer | LJ Manufacturing |
---|---|
SKU | CWSH3036-S |
Condition | New |
Length (in.) | 36.00 |
Depth (in.) | 24 |
Height (in.) | 78 |
Approval | NSF, AGA |
Total BTU | 125000 |
View Spec Sheet
Spec sheet
Approvals
NSF, AGA
Commercial Use Only
Description
• Stainless steel interior and exterior, type 430, fully insulated with 1" density block type fiberglass
• Door-double wall construction, fully insulated, reinforced & recessed into front opening, with 3 heavy duty hinges & 2 swivel latches
• Oven-fitted resistant steel drip guards & removable ceiling panels
• Stainless steel drip pans set over heavy duty baffle plate and fitted with protective anti splash grating
• Gas burners-double port tubular burners controlled by individual gas valves are housed in the insulated chamber below baffle plate
• Positive ignition is provided with separate pilot gas valve and pilot burner extending across individual gas burners, 75,000 BTU each
• All insulation must be under the hood
• NSF Certified
OPTIONAL FEATURES
• AGA Standard is optional (Regulator, Thermostat, Safety Valve). The American Gas Association (AGA) standards address the design, installation and maintenance of natural gas operations.
• Left or Right door hinge
• Thermometer Gauge
• Casters
• All other dimensions are avialable made to order
PARTS & ACCESSORIES
• Single, Double, Triple, and Tetrad burner type
• Small or Large shelf size
• Small or Large water pan size
• S/S or Galvanized crossbar
1 Triple Burner, 1 Double Burner, Stainless Steel Exterior, Stainless Steel Interior, and Fully Insulated. THIS IS NOT A WOOD CHIP SMOKER
STANDARD FEATURES• Stainless steel interior and exterior, type 430, fully insulated with 1" density block type fiberglass
• Door-double wall construction, fully insulated, reinforced & recessed into front opening, with 3 heavy duty hinges & 2 swivel latches
• Oven-fitted resistant steel drip guards & removable ceiling panels
• Stainless steel drip pans set over heavy duty baffle plate and fitted with protective anti splash grating
• Gas burners-double port tubular burners controlled by individual gas valves are housed in the insulated chamber below baffle plate
• Positive ignition is provided with separate pilot gas valve and pilot burner extending across individual gas burners, 75,000 BTU each
• All insulation must be under the hood
• NSF Certified
OPTIONAL FEATURES
• AGA Standard is optional (Regulator, Thermostat, Safety Valve). The American Gas Association (AGA) standards address the design, installation and maintenance of natural gas operations.
• Left or Right door hinge
• Thermometer Gauge
• Casters
• All other dimensions are avialable made to order
PARTS & ACCESSORIES
• Single, Double, Triple, and Tetrad burner type
• Small or Large shelf size
• Small or Large water pan size
• S/S or Galvanized crossbar
