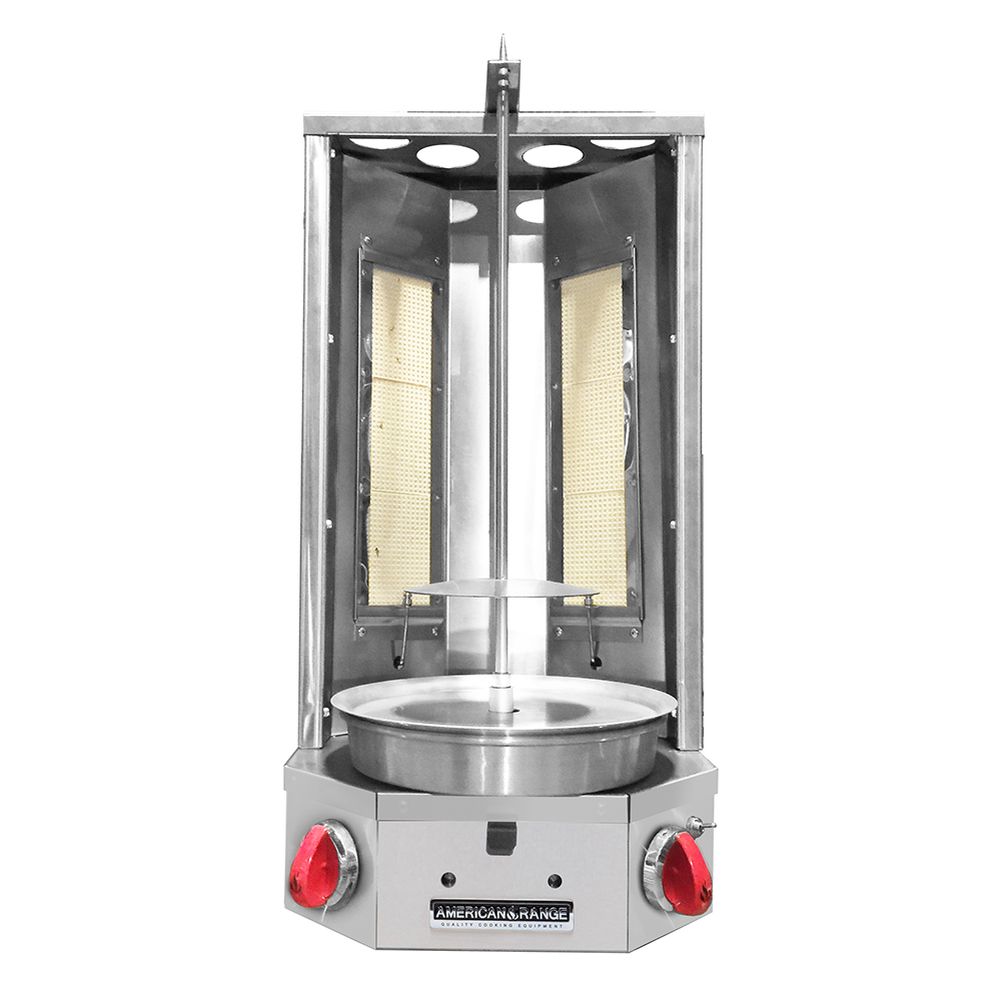

American Range AVB-2E-NG 80 lb. Economy Vertical Natural Gas Gyro Broiler - 40,000 BTU
SKU
AVB-2E-NG
American Range AVB-2E-NG 80 lb. Economy Vertical Natural Gas Gyro Broiler - 40,000 BTU
Chat for info
Free Shipping
Bullets list
- 40,000 BTU
- 80 lb. Meat Capacity
- Adjustable Temperature Range
- Simple Disassembly for Easy Cleanup
American Range AVB-2E-NG 80 lb. Economy Vertical Natural Gas Gyro Broiler - 40,000 BTU
AVB-2E Gas 80 lb. Economy Vertical Gyro Broiler by American Range
American Range innovative technology at work in the food service industry. These hand-crafted broilers are engineered with the most advanced features and fabricated to ensure a long demanding life. All welded frame construction and heavy gauge Stainless Steel panels ensure long life and exceptional quality; an all Stainless Steel body makes clean up easy. High efficiency atmospheric infrared burners provide maximum performance at the least possible cost
Standard Features:
- Sturdy skewers hold up to 80 lb. of product.
- 15" (381) diameter pan at the bottom, slide adjustment front to back.
- High efficiency infrared burners rated @ 20,000 BTU/hr. each (AVB-1E (1), AVB-2E (2))
- Manual valve control for each burner.
- Heavy duty powerful gear motor for smooth and even rotation.
- Toggle switch to turn gear motor on.
- 6 position adjustment of skewer.
- Manifold pressure: 5" W.C. - natural gas. 10" W.C. - propane gas.
- When ordering, please specify type of gas and altitude if over 2,000 ft.
- Gas inlet size: 3/4" NPT at bottom.
- A gas pressure regulator is provided and must be installed when the appliance is connected to the gas supply.
- 120 VAC, Single Phase, 60Hz, 15 AMP. 3 prong grounded power cord provided.
- ETL-Sanitation
- Made in USA
Approvals
-
cETLus
-
ETL-Sanitation
-
NSF
Documents
Product Specifications
Manufacturer | American Range |
---|---|
SKU | AVB-2E-NG |
Condition | New |
Length (in.) | 17.00 |
Depth (in.) | 17 |
Height (in.) | 33 |
Volts | 120 |
Hertz | 60 |
Phase | 1 |
Kilowatts | 12 |
Amps | 15 |
Nema Plug | 5-15P |
Approval | cETLus, ETL-S, NSF |
Total BTU | 40000 |
Capacity | 70 lb. |
Spit Height (in) | 27.00 |
